S2-12P, Sensata / Cynergy3 Sensata / Cynergy 3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V dc Max, 0.7 A Max, 1000Ω, Реле

Axial style reed relay

The Cynergy3 S2 series reed relay has been developed for applications where PCB mounting is not possible. To ease assembly into equipment the lead-out wires are very flexible and to suit specific applications these axial style reed relays can be mounted in a variety of methods and orientations. S2 series reed relay is available with a 50 W contact in a pressurised reed switch or a 100 W contact in an evacuated reed switch.

Variable mounting options
50 W and 100 W contact options
Reliable reed switch contacts

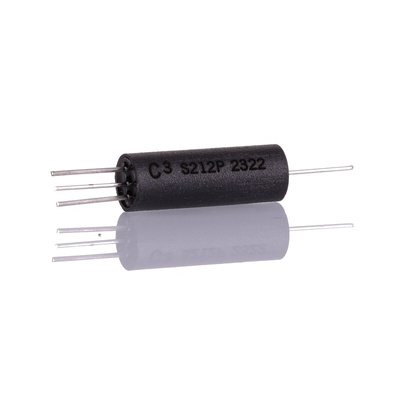

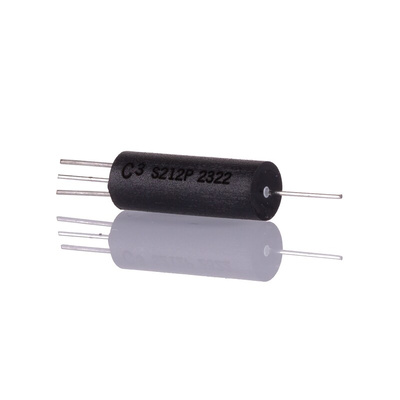

Sensata Cynergy3 Reed Relay, Axial Type, 12V DC Coil Voltage - S2 Series - S2-12P

Looking for a compact switch that can quickly turn large electrical loads on and off? Turn to this reed relay from Sensata Cynergy3. It has a rapid operating speed of just 1ms for fast and reliable switching. Thanks to its compact diameter of 7.62mm and its length of 22.86mm, it's suitable for use in systems where space is limited. Flexible lead-out wires mean it's ideal for situations where PCB mounting isn't possible. You'll find relays like this used in applications from automotive systems to medical equipment.

Features & Benefits

• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Long service life of one billion dry switching cycles for long-lasting performance

How does a reed relay work?

A reed relay is made up of two conductive contacts inside an electrical coil. When the coil is energised, it creates a magnetic field that moves the contacts together or apart to complete or break a circuit.

How do I mount this reed relay?

Thanks to its flexible terminal pins, this relay supports both surface and through-hole mounting. It can be oriented to suit the needs of your system for versatile installation.

Cynergy3 - S2 relay series
