S8-2405, Sensata / Cynergy3 Sensata / Cynergy 3 PCB Mount Reed Relay, 24V dc Coil, SPST, 350V dc Max, 1 A Max, 1550Ω, Реле

Miniature high voltage relay

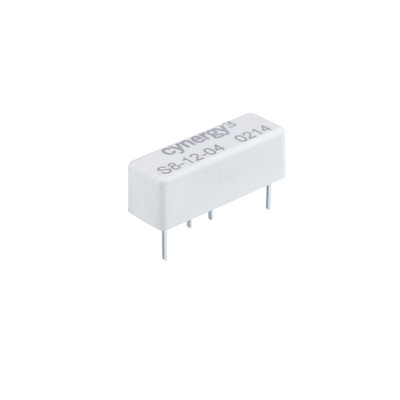

The Cynergy3 S8 series miniature high voltage reed relay is perfect for applications where space saving is a prime consideration. To give improved isolation between the high voltage contacts and the low voltage coil S8 miniature reed relays have the coil pins positioned near the centre of the relay while the contact pins are near the ends.

Space saving package
Isolation Voltage across contacts 4kV or 5kV (dependant on coil voltage)
Isolation Voltage 7kV contact to coil
2.5A carry current

Sensata Cynergy3 Miniature Reed Relay, 24V DC Coil Voltage, 1ms Operating Time - S8 Relay Series - S8-2405

Increase the speed of your circuit switching with this miniature reed relay from Sensata Cynergy3. It has a fast operating time of 1ms, giving you quick reaction times. Thanks to its PCB (printed circuit board) mounting style, you can easily add this switch to new or existing electrical circuitry. The unit's contacts are made from rhodium for low electrical resistance, allowing for the rapid movement of charge. For simple on-off device powering, the product features a basic SPST (single pole single throw) configuration. Reed relays like this one are often used for electronic instruments and testing applications.

Features & Benefits

• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Long lifespan of one billion dry operations to ensure reliability
• Maximum switching voltage of 300V AC (alternating current) or 350V DC (direct current) for use in high-voltage applications

How large is this reed relay?

This miniature reed relay has highly compact dimensions of 30 (length) x 10 (width) x 11.5mm (height). This makes it a good choice for use in electrical circuits where space is limited.

Cynergy3 - S8 relay series
