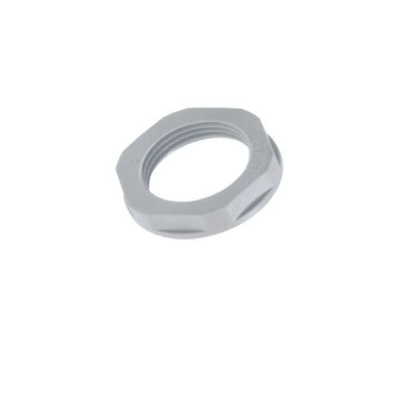

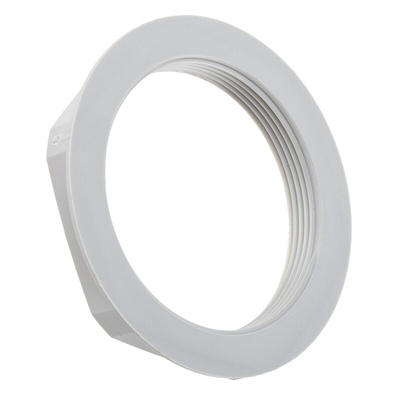

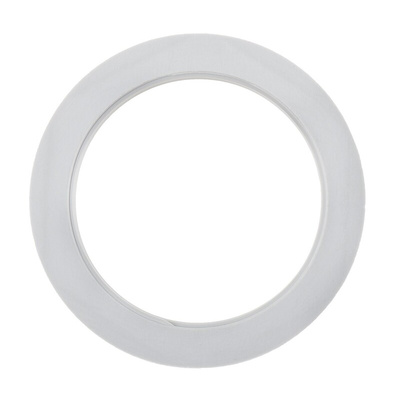

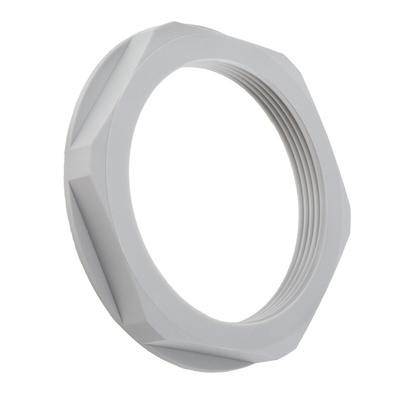

53119063, Lapp Grey Flame Retardant, Halogen Free Polyamide Cable Gland Locknut, M50 Thread, Гайка

SKINTOP GMP-GL-M Locknuts

From Lapp, the Skintop GMP-GL-M series of lock nuts are for use with corresponding plastic Skintop cable glands. They lock the glands into boreholes that don’t have threads, for added mechanical stability where it counts.

The lock nuts have a robust fibre-glass re-enforced body, with a supporting surface for a spanner that helps prevent scratching and damage to the housing during assembly. For a secure and easy connection suitable for demanding environments, these lock nuts are essential.

Features and Benefits

• Easy to Install
• UV Resistant
• Temperature Resistant
• Oil Resistant
• High Level of Chemical Resistance
• Operating Temperature Range Fixed: -40°C to +100°C
• Operating Temperature Range Dynamic: -20°C to +100°C

Applications

Skintop Click glands can be used whenever fast and convenient cable connection is needed, and offer quick and easy cable termiantion to panels, junction boxes and equipment.

Note

UL approval only when used with the UL-approved SKINTOP® polyamide cable glands

LAPP Cable Gland Locknut, Metric Thread, Oil Resistant - SKINTOP Series - 53119063

Ensure your cable gland is held securely in place with the help of this cable gland locknut from LAPP. You can use it with boreholes that don't have threads to add mechanical stability to your cable assembly. The unit makes it easy to terminate your cable to panels or junction boxes, for quick and uncomplicated installation. It incorporates a supporting surface for spanners, so there's little chance of scratching your housing during assembly.

• Made from robust glass-fibre reinforced PA that resists wear and corrosion, for compatibility with harsh or humid settings
• Comes in a pack of five that you can conveniently keep on hand and use when needed
• Wide fixed operating temperature range between -40°C and +100°C, making it suitable for extreme conditions

Applications

• Agricultural equipment
• Automotive manufacturing
• Machine building
• Shipyards

Is this locknut UV-resistant?

Yes, as it's made from PA plastic, it resists the weathering effects of UV light.

Nylon Locknut PG & Metric Threads Data Sheet

Datasheet - 53119063
