BK1550, BK Precision 1550 Series Analogue Bench Power Supply, 1 → 36V, 0 → 3A, 1-Output, 108W - RS Calibrated, Блок питания

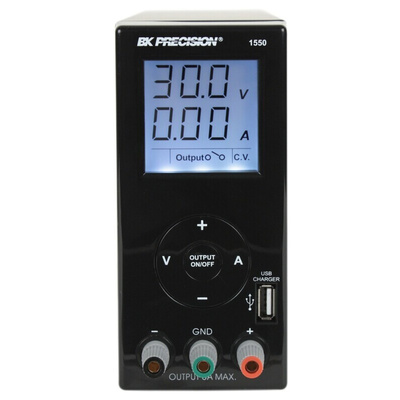

B&K Precision Model 1550 Switching DC Bench Power Supply with USB Charger

B&K Precision Model 1550 is a compact 108W power supply delivering 1 - 36V and 0 - 3A from its main isolated output. A unique feature is the USB charging port located on the front panel, enabling the user to charge a cell phone or MP3 player. Clean power and quiet operation make the 1550 an appropriate choice in meeting the the constraints on available bench space in laboratories, workshops and schools. The rear panel design incorporates a security loop to secure the power supply to a workstation, so as to prevent unwanted removal.
Our B&K Precision bench power supplies include the 1671A ( 817-2226 ), 1687B ( 817-2229 ), 9120A ( 817-2213 ) & 9130 ( 817-2217 ). Users of our B&K Precision bench power supplies may also be interested in our B&K Precision electronic loads: 8500 ( 817-2204 ), 8502 ( 817-2207 ), 8510 ( 817-2201 ), 8512 ( 817-2223 ) & 8540 ( 817-2210 ).

USB charging port on front panel
Rear panel security loop
Compact design - dimensions 70 x 150 x 250 mm, weight 2kg
Output On/Off control
Large, bright easy-to-read LCD display
Constant voltage and constant current operation
Overvoltage protection

Supplied with

power cord, user manual

BK Precision Switching DC Power Supply

The BK Precision 108W analogue switching DC power supply has an output voltage rating of 1V to 36V and a current rating of 0A to 3A from its main isolated output. The clean power and quiet operation make this power supply ideal for any application with limited bench space.
Inclusions:
Power cord, user manual.

Features and Benefits

USB charging port on front panel
Rear panel security loop
Compact design
Output ON/OFF control
Large bright easy to read LCD 3-display
Constant voltage and constant current operation
Overvoltage protection
Efficiency at maximum power is 83%
Width of 70mm, height of 150mm and depth of 250mm
Weight is 2kg

Applications

Industrial
Medical equipment
Electronic equipment
Schools

Certifications

Ce certified
IEC 320

B&K Precision

Model 1550 Switching DC Power Supply with USB Charger Output 1-36 V, 0-3 A Data Sheet
