TEQ 100-7215WIR, TRACOPOWER TEQ 100WIR DC-DC Converter, 24V dc/ 4.2A Output, 43 → 160 V dc Input, 100W, Chassis Mount, +105°C Max, Преобразователь

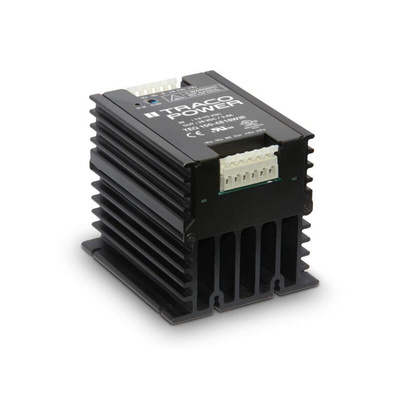

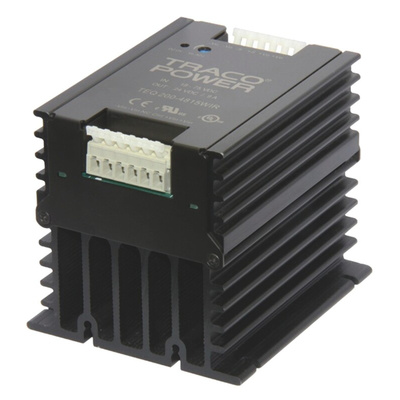

Traco Power DC-DC Converter, 24V DC Output Voltage, 90% Efficiency - TEQ 100WIR Series - TEQ 100-7215WIR

Change things up and power your systems efficiently with this DC-DC converter from Traco Power. It converts an input voltage between 43 and 160V DC to an output voltage of 24V DC, so it's a good choice for use in low-power applications. The aluminium casing is resistant to impact and wear, so it can take a knock in harsh industrial conditions. Natural convection cooling helps to prevent overheating, meaning it won't break a sweat in high-heat environments.

Features & Benefits

• Power rating of 100W for use in heavy-duty applications
• High efficiency of 90% means it's an energy-saving device
• Compact dimensions of 88.9 (L) x 87.6 (W) x 103.2mm (D) for installation in tight spaces
• MTBF of 711,000 hours at +55°C for long-lasting performance
• Light weight of 800g keeps equipment mass to a minimum

Applications

• IT equipment
• Railways
• Industrial automation

Can I install this DC-DC converter in a harsh industrial environment?

Yes. This device has a broad operating temperature range between -40°C and +95°C, so it can stand up to demanding environments.
