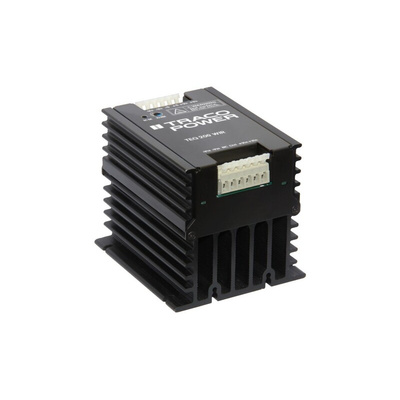

TEQ 200-4812WIR, TRACOPOWER TEQ 200WIR DC-DC Converter, 12V dc/ 18A Output, 18 → 75 V dc Input, 216W, Chassis Mount, +55°C Max, Преобразователь

Traco 200W Single Output Regulated Isolated DC-DC Converter - TEQ-200 Series

The Tracopower TEQ-200WIR series of isolated, high performance DC-DC converters come with ultra-wide 4:1 input voltage range in a rugged, sealed metal case. These converters can be used with a temperature up to 70°C with natural convection cooling and up to 90°C with power derating. The TEQ-200WIR features output voltage trimming, remote ON/OFF and under voltage lockout. These DC-DC converters are suitable for a wide range of applications, including railway and battery operated systems, but they are particularly designed for industrial applications where no PCB mounting is possible and the module has to be mounted on chassis.

High power block with excellent thermal convection
Operating temperature -40°C to +70°C without derating
Increased shock & vibration resistance
Ultra wide 4:1 input voltage range
Approved for railway applications
Excellent efficiency up to 90%
I/O insulation 2250 VDC
Under voltage lock-out circuit
Soft start
Input protection filter

Standards

UL 60950-1, IEC/EN 60950-1, UL 508, EN50155

Approvals

UL/cUL
