1600187, Lapp 2 Core Power Cable, 2.5 mm², 50m, Black Rubber Sheath, 26 A, 450/750 V

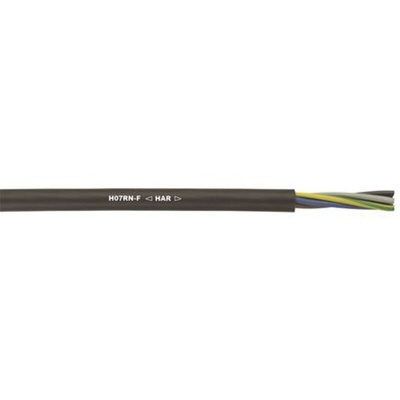

H07RN-F Heavy Duty High Stress Rubber Cable

From Lapp, the H07RN-F cable is ideal for handheld and power supply devices. This heavy duty rubber sheathed cable is designed to withstand medium mechanical stress, and is often found used in challenging environments. Thanks to the cable's resistance to cold, water and UV, it can even be used for some outdoor applications.

Comprised of a harmonized fine wire copper strand with a rubber compound core insulation and outer sheath, this single-core black rubber cable is halogen free and flame resistant. Flexible and reliable, the Lapp H07RN-F cable is often used as a safe and reliable way to connect machinery and equipment to mains power.

Features and Benefits

• according to EN 50525-2-21
• High stresses
• For protected and fixed installation permitted up to 1000V
• Flame Retardant to IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Normativity not ozone resistant

Applications

This H07RN-F can be used for circuit proof and short to ground proof installations. The cable is environmentally resistant, and is tough enough to use in demanding application such as;

• Water Treatment
• Refrigerated Environments
• Construction Work-sites
• Stage and Studio Cabling
• Agricultural and Industrial

What Does H07RN-F Mean?

H07RN-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of common standard product.

H07RN-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 07 = 450 / 750 voltage rating
• R = Natural or synthetic rubber insulation
• N = Chloroprene or polychloroprene rubber sheath
• F = Flexible copper conductors

Standards

IEC 60332-1-2, EN 60811-2-1, HD 22.4/VDE 0282-4 and HD 22.1/VDE 0282-1, HAR, RoHS, CE

LAPP Power Cable, Heavy Duty, 2 Cores - 1600187

Do you need the help of a high-performance electrical cable for heavy-duty industrial applications? Plug in this power cable from LAPP. It has an overall cross-sectional area of 2.5mm² and two cores, so you're ensured of reliable performance when linking up your machinery. The black rubber sheath protects against mechanical damage, abrasion and exposure to chemicals and liquids. It's also highly flexible, making the cable a cinch to install around corners and other obstacles.

Features & Benefits

• 100m length is ideal for long-distance installations
• Suitable for use outdoors, thanks to its weather-resistant design
• Wide operating temperature range between -25°C and +60°C for use in challenging conditions

Applications

• Handheld tools
• Power supply devices
• Agricultural machinery

Can I use this cable with high-power equipment?

A voltage rating of 450/750V, makes this a suitable option for use with demanding applications.
