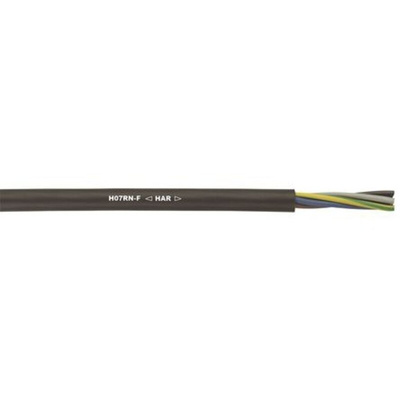

16001053, Lapp 4 Core Power Cable, 2.5 mm², 100m, Black Rubber Sheath, 26 A, 450/750 V

H07RN-F Heavy Duty High Stress Rubber Cable

From Lapp, the H07RN-F cable is ideal for handheld and power supply devices. This heavy duty rubber sheathed cable is designed to withstand medium mechanical stress, and is often found used in challenging environments. Thanks to the cable's resistance to cold, water and UV, it can even be used for some outdoor applications.

Comprised of a harmonized fine wire copper strand with a rubber compound core insulation and outer sheath, this single-core black rubber cable is halogen free and flame resistant. Flexible and reliable, the Lapp H07RN-F cable is often used as a safe and reliable way to connect machinery and equipment to mains power.

Features and Benefits

• according to EN 50525-2-21
• High stresses
• For protected and fixed installation permitted up to 1000V
• Flame Retardant to IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Normativity not ozone resistant

Applications

This H07RN-F can be used for circuit proof and short to ground proof installations. The cable is environmentally resistant, and is tough enough to use in demanding application such as;

• Water Treatment
• Refrigerated Environments
• Construction Work-sites
• Stage and Studio Cabling
• Agricultural and Industrial

What Does H07RN-F Mean?

H07RN-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of common standard product.

H07RN-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 07 = 450 / 750 voltage rating
• R = Natural or synthetic rubber insulation
• N = Chloroprene or polychloroprene rubber sheath
• F = Flexible copper conductors

Standards

IEC 60332-1-2, EN 60811-2-1, HD 22.4/VDE 0282-4 and HD 22.1/VDE 0282-1, HAR, RoHS, CE

LAPP Power Cable, 290kg/km Weight, Copper Conductors - 16001053

Bridge the gap between your equipment and its energy source with this 4-core power cable from LAPP. It's unterminated at both ends, giving you the freedom to pick an adaptor that suits your needs. The lead is designed to be safe for handling and signal transmission, thanks to its rubber core insulation and outer sheath that prevent electrical hazards. A voltage rating of 750V makes it fit for medium-voltage applications.

Features & Benefits

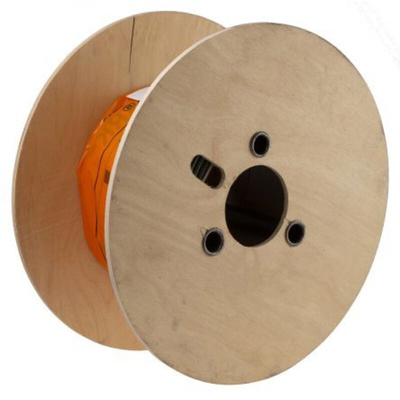

• 100m on a reel provides plenty for long runs and numerous tasks
• A broad operating temperature range between -25°C and +60°C partners well with demanding conditions
• Oil and UV-resistant to shrug off damaging environmental factors

Applications

• Mining industry
• Oil and gas plants
• Construction sites
• Factories

How much surge voltage does this cable withstand?

This unit handles up to 2.5kV of impulse voltage without damage, so it's a safe choice in the event of a sudden power spike.
