16001063, Lapp 4 Core Power Cable, 4 mm², 100m, Black Rubber Sheath, 34 A, 450/750 V

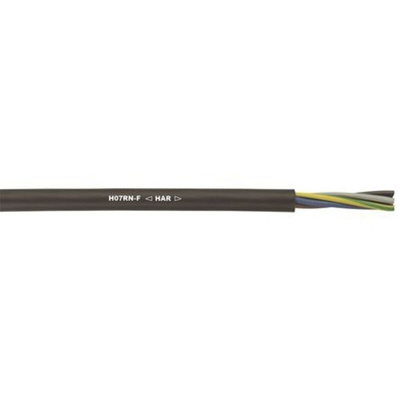

H07RN-F Heavy Duty High Stress Rubber Cable

From Lapp, the H07RN-F cable is ideal for handheld and power supply devices. This heavy duty rubber sheathed cable is designed to withstand medium mechanical stress, and is often found used in challenging environments. Thanks to the cable's resistance to cold, water and UV, it can even be used for some outdoor applications.

Comprised of a harmonized fine wire copper strand with a rubber compound core insulation and outer sheath, this single-core black rubber cable is halogen free and flame resistant. Flexible and reliable, the Lapp H07RN-F cable is often used as a safe and reliable way to connect machinery and equipment to mains power.

Features and Benefits

• according to EN 50525-2-21
• High stresses
• For protected and fixed installation permitted up to 1000V
• Flame Retardant to IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Normativity not ozone resistant

Applications

This H07RN-F can be used for circuit proof and short to ground proof installations. The cable is environmentally resistant, and is tough enough to use in demanding application such as;

• Water Treatment
• Refrigerated Environments
• Construction Work-sites
• Stage and Studio Cabling
• Agricultural and Industrial

What Does H07RN-F Mean?

H07RN-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of common standard product.

H07RN-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 07 = 450 / 750 voltage rating
• R = Natural or synthetic rubber insulation
• N = Chloroprene or polychloroprene rubber sheath
• F = Flexible copper conductors

Standards

IEC 60332-1-2, EN 60811-2-1, HD 22.4/VDE 0282-4 and HD 22.1/VDE 0282-1, HAR, RoHS, CE

LAPP 4-Core Power Cable, 100m Length, 11AWG - 16001063

Looking for a safe and reliable way to connect your industrial, domestic and commercial machinery and equipment to a mains power supply? This core power cable from LAPP delivers uninterrupted and dependable electricity from power sources to your applications. A heavy-duty rubber sheath withstands medium mechanical stress, assuring you of the product's quality and making it hard-wearing so you can confidently use it in demanding environments. Resistance to cold, water and UV damage makes this a good choice for outdoor electrical installations.

Features & Benefits

• Quality and safety-tested to handle alternating voltage of up 1,000V for protected and fixed installations
• Flame-retardant construction for peace of mind in the event of a fire
• Wide operating temperature range from -25°C to +60°C for use in harsh conditions
• Oil resistance for a long-lasting product that effectively protects internal conductors

Applications

• Industrial machinery
• Automated agricultural equipment
• Light and sound technologies

What Does H07RN-F Mean?

This term refers to a type of harmonised cable and the associated referencing system. The 'H' stands for harmonised, while the '07' indicates a 450/470 voltage rating. The 'R' refers to the cable's natural or synthetic rubber insulation and the 'N' a chloroprene or polychloroprene rubber sheath. Lastly, the 'F' stands for flexible copper conductors.
