16001303, Lapp 5 Core Power Cable, 4 mm², 100m, Black Rubber Sheath, H07RNF, 34 A, 450/750 V

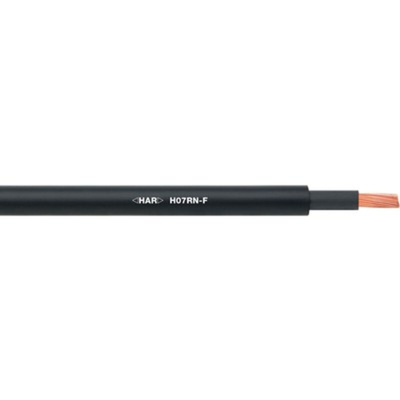

H07RN-F Heavy Duty High Stress Rubber Cable

From Lapp, the H07RN-F cable is ideal for handheld and power supply devices. This heavy duty rubber sheathed cable is designed to withstand medium mechanical stress, and is often found used in challenging environments. Thanks to the cable's resistance to cold, water and UV, it can even be used for some outdoor applications.

Comprised of a harmonized fine wire copper strand with a rubber compound core insulation and outer sheath, this single-core black rubber cable is halogen free and flame resistant. Flexible and reliable, the Lapp H07RN-F cable is often used as a safe and reliable way to connect machinery and equipment to mains power.

Features and Benefits

• according to EN 50525-2-21
• High stresses
• For protected and fixed installation permitted up to 1000V
• Flame Retardant to IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Normativity not ozone resistant

Applications

This H07RN-F can be used for circuit proof and short to ground proof installations. The cable is environmentally resistant, and is tough enough to use in demanding application such as;

• Water Treatment
• Refrigerated Environments
• Construction Work-sites
• Stage and Studio Cabling
• Agricultural and Industrial

What Does H07RN-F Mean?

H07RN-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of common standard product.

H07RN-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 07 = 450 / 750 voltage rating
• R = Natural or synthetic rubber insulation
• N = Chloroprene or polychloroprene rubber sheath
• F = Flexible copper conductors

Standards

IEC 60332-1-2, EN 60811-2-1, HD 22.4/VDE 0282-4 and HD 22.1/VDE 0282-1, HAR, RoHS, CE

LAPP Power Cable, Bare Copper Conductor, 100m Length - 16001303

This power cable by LAPP is a high-quality solution for various applications in automation, electronics, electrical, and mechanical industries. With its 11 AWG copper construction, flame retardant properties, rubber insulation, and 4mm² cross-sectional area, this cable ensures reliable and secure power transmission in demanding environments.

Features & Benefits

• Durable 11 AWG copper construction provides excellent conductivity and resistance to wear and tear
• Flame retardant properties ensure safe operation even in high-temperature environments
• Rubber insulation offers flexibility and protection against external factors, enhancing the cable's longevity
• 4 mm² cross-sectional area allows for efficient power transmission over long distances
• With a current rating of 34A, this cable is suitable for heavy-duty applications
• The H07RN-F classification guarantees compliance with European standards for power cables
• ECA CPR certification ensures the cable meets fire safety requirements
• CE approval further confirms the quality and reliability of this power cable
• Voltage rating of 450/750 V allows for versatile application in various industrial settings

Applications

• Ideal for handheld and power supply devices in electronics and automation industries.
• Suitable for tools, machinery, and agricultural devices subject to medium mechanical stress.
• Perfect for use in dry or damp rooms as well as outdoors in electrical installations.
• Provides reliable power transmission for light and sound technology applications.
• Can be used in areas with an explosion hazard due to its flame-retardant properties.

Can it withstand high operating temperatures?

Yes, the power cable has a maximum operating temperature of +60°C and a minimum operating temperature of -25°C, making it suitable for a wide range of environments.

Is the cable suitable for outdoor use?

Yes, the cable is designed for outdoor applications, providing reliable power transmission even in harsh environmental conditions.
