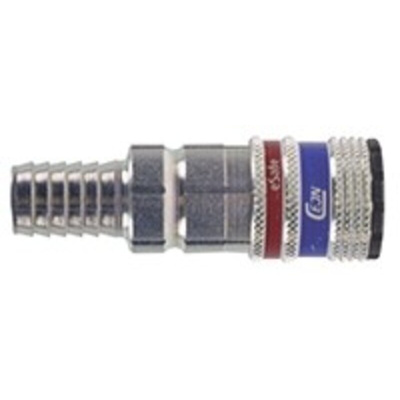

103002005, CEJN Pneumatic Quick Connect Coupling Brass, Steel 13mm Hose Barb, Муфта

8179255
Номер производителя: 103002005Производитель: CEJN
Цена за шт.
7833.00 руб. (С НДС) *
Количество 5+ 10+
Цена 7590.00 руб. 7347.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CEJN 300 Series, 5.5mm Flow Diameter

CEJN series 300 couplings offer high flow and require only a low connection force, which ensures a safe working environment. Male threads on the couplings and nipples feature pre-applied thread sealant. The series 300 vented safety version is disconnected in two stages in order to vent the coupling and minimise the risk of sudden component separation, which has the potential to cause operator injury. Full automatic operation ensures easy handling. Couplings have zinc plated steel bodies, NBR seals, brass shut off valves and hardened zinc-plated steel sleeves. Nipples have hardened zinc plated steel bodies and plugs.

Flow capacity upto 1050 l/min
Nominal Flow Diameter 5.5 mm
Strong and durable
Easy to connect
Available in standard and safety versions
Two stage safety types
Interchanges with Aro 210 & Rectus 14 series

Standards

The vented safety version complies with ISO standard 4414 and EN 983

Interchanges to other Brand Profiles

Техническая спецификация
pdfPneumatic Products Data Sheet
Внешнее покрытие:
Цинкованный
Давление - максимальное рабочее:
16 бар
Материал:
Латунь, Сталь
Материал уплотнения:
NBR
Подключение зубцов шланга:
13мм
Производитель - серия:
300
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-20°C
Соединение - тип:
Hose Barb
