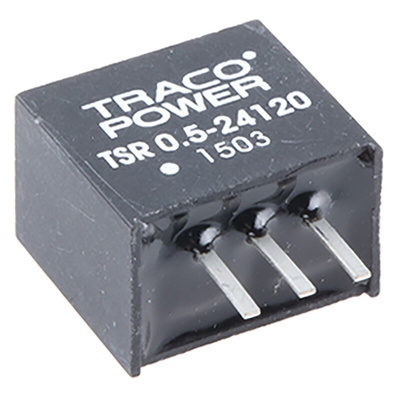

TSR 0.5-24120, TRACOPOWER Switching Regulator, Through Hole, 12V dc Output Voltage, 15 → 32V dc Input Voltage, 500mA Output, Импульсные стабилизаторы

Traco Power Switching Regulator, SIP3 Format, 2g Weight - TSR 0.5 Series - TSR 0.5-24120

Pick up this switching regulator from Traco Power to do the leg work when stepping down direct current. It transforms a broad input voltage range between 15 and 32V DC to a regular output of 12V DC, so it's an ideal option for low-power applications. It's no problem to slip this component into a small enclosure, thanks to its compact dimensions of 11.5 (L) x 7.55 (W) x 10.2mm (D). Thanks to a 97% efficiency rating, you can be sure minimal energy is wasted during conversion, ensuring you get the most out of your input.

Features & Benefits

• Through-hole mounting achieves a vibration-resistant and permanent hold
• ±0.2% line regulation and ±0.4% load regulation for stability and consistent performance
• High mean time between failures of two million hours means it's a dependable choice
• Reliable performance in temperatures between -40°C and +90°C to suit most workplaces

Applications

• Factory automation
• Safety technology
• IT services

Is this switching regulator fire-safe?

Yes. It's made of UL 94-V0-rated material, which means it self-extinguishes in under 10 seconds in the event of a fire.
