Recom Switching Power Supply, RAC04-12SC/230, 12V dc, 333mA, 4W, 1 Output, 80 → 264V ac Input Voltage, Источник питания

Recom 4W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC04-C/230 Series

The RAC04-C/230 Power Supply comes in an encapsulated PCB-mount package style. This 4W Regulated AC/DC converter offers universal input and High efficiency of up to 79%. The RAC04-C/230 has a Maximum No Load ˂100mW with a 3.75kVac isolation. Ideal applications of this encapsulated power supply are in home automation, board-level power supplies, instrumentation systems and standby applications. The Recom RAC04/277 regulated converter comes with a three year warranty.

Universal input 80-26Vac
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B

Standards

EN-60950-1, UL-60950-1

Approvals

EN, UL and CE certified

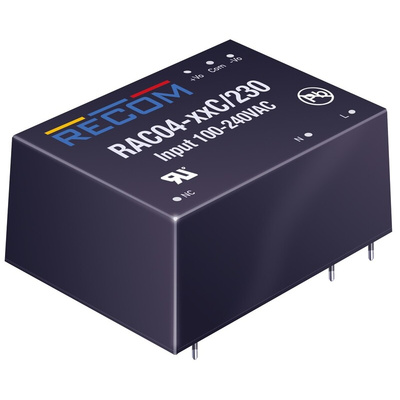

RECOM Switching Power Supply, Encapsulated Package Type, 31.5g Weight - RAC04-C/230 Series - RAC04-12SC/230

Need a simple way to swap AC for DC? Choose this switching power supply from RECOM. It takes in a wide supply voltage between 80 and 264V AC to deliver a smooth 12V DC output, so it's a versatile option. The unit works in harsh conditions without breaking a sweat, thanks to its operating temperature range of -40°C to +65°C. Inbuilt voltage isolation protection of 3.75kV AC stops power surges in their tracks, so you can be sure your equipment's protected. Through-hole mounting gives you a secure connection, even in high-vibration applications.

Features & Benefits

• Mean time between failures of 500,000 hours for reliable long-term performance
• Self-extinguishing housing stops burning in under 10 seconds in the event of a fire
• Auto-recovery short-circuit protection stops power surges from damaging your equipment
• 77% efficiency makes it an energy-conscious choice

Applications

• Industrial power supplies
• Food and beverage production
• Medical equipment

How big is this power supply?

This unit has compact dimensions of 36.7 (L) x 17.1 (D) x 27.2mm (W), so it's a handy option for busy setups.

What's the power rating of this product?

A power rating of 4W means it handles demanding applications.

RAC04-C/230 AC/DC-Converter Data Sheet
