1553TTGY, Hammond 1553 Series Light Grey Flame Retardant ABS Handheld Enclosure, , IP54, 165 x 80 x 28mm, Корпус

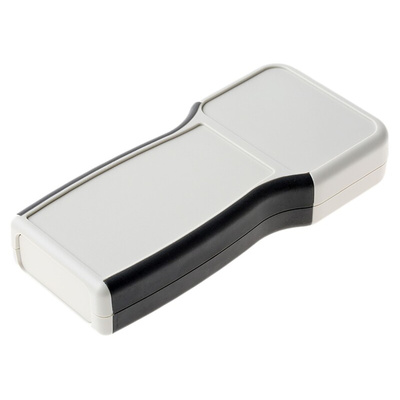

Hammond Handheld Enclosure, 165 (L) x 80 (W) x 28mm (H), T-Shape, 110g Weight - 1553 Series - 1553TTGY

Are you building a remote-controlled device? Choose this handheld enclosure from Hammond. It houses PCBs sized up to 74 (W) x 151mm (L) and there's extra space for wiring to suit your design. The plastic casing is flame-resistant to protect your kit from fire damage. Thanks to integral brass bushings, you can screw and unscrew this unit repeatedly without wearing down the thread. With an ergonomic T shape and soft sides, it's comfortable to handle so ideal for use with monitoring or mobile instruments.

Features & Benefits

• ABS plastic is easy to machine so you can customise your setup
• Recessed display and keyboard areas give you design options
• Lap-joint construction and an IP54 rating indicate it resists dust and water to suit demanding conditions

Applications

• Automotive sector
• Manufacturing industry
• Aerospace facilities

Does this unit have a battery door?

No, it has two removable end panels that make it ideal for wired power applications. An alternative version (818-0422) is available if you need an enclosure in this size with a battery door built in.

Can I carry this enclosure around hands-free?

Yes, just install a belt clip (570-653) to make it easy to carry around.

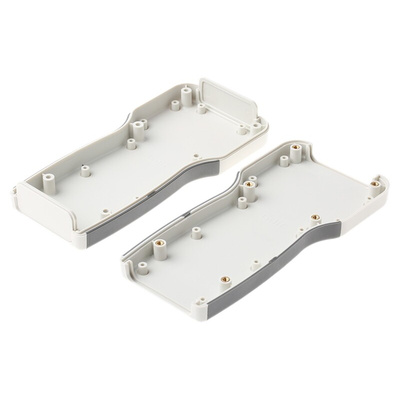

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Soft Sided T Case 1553TT Drawing

Datasheet

Datasheet - 1553TTGY
