171281 SL7-AP24, Eaton Sounder unit, 24 V ac/dc, AC, DC, IP66

Eaton SL7 Modular Signal Towers

The Eaton SL7 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.
The SL7 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.
Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.
Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features and Benefits

• Red, yellow, green, blue, clear and orange (amber) colours available for the international market

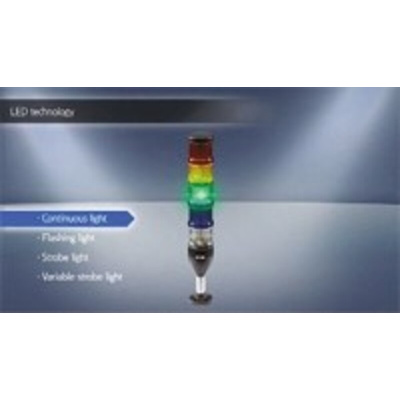

• Lighting variants include continuous light, flashing light, strobe light and variable strobe light
• LEDs and high performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions
• High performance LEDs for extra brightness
• IP66 rated for protection against strong jets of water from any direction
• Modules can be changed easily with a simple twist
• Bayonet fitting for quick and easy mounting and dismantling
• Transport cover for cables and connections
• Available in 24 V, 120 V and 230 V versions

Standards

IEC/EN 60947-5-1.

Eaton Multi-Tone Sounder Unit, 24V AC/DC Supply Voltage, 88 to 100dB - SL7 Series - 171281 SL7-AP24

Add an audible alert to your industrial signalling system with this sounder unit from Eaton. It has a wide sound output range of 88 to 100dB (decibels), so you can set it to the volume that best suits your working environment. The unit is made from a durable PC (polycarbonate) material that's resistant to impact and wear, so you can rely on it to be long-lasting. An operating temperature range of -30°C to +60°C makes it suitable for use in demanding conditions. Use this sounder to alert personnel to machine hazards and emergency situations in your industrial workplace.

• Connects with light modules from the SL7 series for easy compatibility
• Compact dimensions of 71 (height) x 73.2mm (base diameter) to save space
• Transmission angle of 360° means it can be heard from all directions

How many tones does this sounder have?

This versatile unit offers a choice between a continuous and a pulsed tone. You can use the internal DIP (dual in-line package) switch to select the most appropriate tone for your situaiton.

Note

Eaton formerly known as Moeller

Continuous/pulse Sounder 24V Data Sheet

Machine Guarding and Safety Range Overview

Instruction Sheet - 171281 SL7-AP24
