171291 SL7-L24, Eaton Incandescent Clear Bulb, BA15d 24 V

Eaton SL7 Modular Signal Towers

The Eaton SL7 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.
The SL7 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.
Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.
Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features and Benefits

• Red, yellow, green, blue, clear and orange (amber) colours available for the international market
• Lighting variants include continuous light, flashing light, strobe light and variable strobe light
• LEDs and high performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions
• High performance LEDs for extra brightness
• IP66 rated for protection against strong jets of water from any direction
• Modules can be changed easily with a simple twist
• Bayonet fitting for quick and easy mounting and dismantling
• Transport cover for cables and connections
• Available in 24 V, 120 V and 230 V versions

Standards

IEC/EN 60947-5-1.

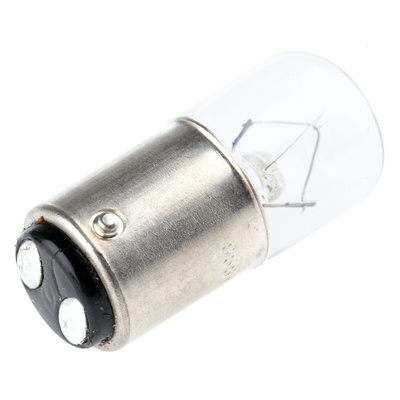

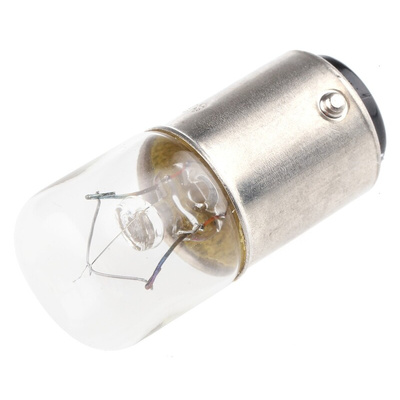

Eaton Incandescent Clear Bulb For Use With SL7-L Signal Towers, 6.5WPower Rating, 3000h Life Cycle - 171291 SL7-L24

For quick notification of machine processes in your industrial environment, use this incandescent bulb from Eaton. It's designed for use with signal towers from the SL7-L range, for easy compatibility. The unit comes with a built-in BA15d lamp base, meaning it's simple to mount and has two contacts at its bottom to ensure a stable electrical connection. A power rating of 6.5W makes it suitable for low-power applications. For versatility, this bulb can be used in lighting fixtures or as a signalling unit in your machine-guarding system.

• Clear colour for visibility in low-light situations
• Compact dimensions of 35 (height) x 15.3mm (diameter) to fit in small signal tower beacons
• Broad current rating between 49 and 54mA for energy-efficiency

How long will this bulb last?

This bulb has a lifespan of 3,000 hours, making it suitable for long-term use.

Can this bulb withstand harsh environments?

Yes, it can. Thanks to its broad operating temperature range between -30°C and +60°C, it's durable for use in demanding settings.

Note

Eaton formerly known as Moeller

Filament Lamp, 24V Data Sheet

Machine Guarding and Safety Range Overview

SL7-L24-Datasheet
