171315 SL4-L24-R, Eaton Red Steady Effect Beacon Unit, 24 V, LED Bulb, AC, DC, IP66

Eaton SL4 Modular Signal Towers

The Eaton SL4 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.
The SL4 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.
Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.
Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features and Benefits

• Red, yellow, green, blue, clear and orange (amber) colours available for the international market
• Lighting variants include continuous light, flashing light, strobe light and variable strobe light
• LEDs and high performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions
• High performance LEDs for extra brightness
• IP66 rated for protection against strong jets of water from any direction
• Modules can be changed easily with a simple twist
• Bayonet fitting for quick and easy mounting and dismantling
• Transport cover for cables and connections
• Available in 24 V, 120 V and 230 V versions
• Slim design is ideal for installations with limited space

Standards

IEC/EN 60947-5-1.

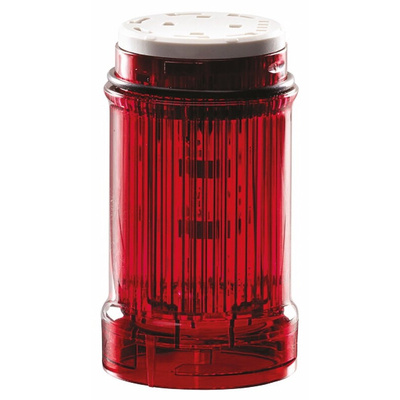

Eaton Red LED Beacon Unit, Steady Light Effect, 24 V AC/DC - SL4 Series - 171315

Choose this LED (light-emitting diode) stacklight from Eaton to ensure efficient machine and process control in industrial settings. It emits a steady red light to indicate emergency stops, quality check failures or machine errors. The unit has an IP (ingress protection) 66 rating, meaning it's completely protected against dust and powerful water jets. This makes it a safe choice for use in demanding indoor and outdoor settings. Its lifespan of 100,000+ hours ensures reliable, long-lasting performance.

• High-performance LEDs for maximum illumination, even in direct sunlight
• Strong polycarbonate construction for high impact resistance
• Simple twist-and-lock assembly without the need for additional tools
• Wide operating temperature range of -30°C to +60°C for use in tough industrial settings

How can I integrate this beacon into a larger system?

This unit is designed for use with SL4 series stacklight solutions from Eaton. The series includes LED lights, audible alarms, base units and accessories for machine control.

How much electricity does this unit use?

This unit uses between 0.022 A and 0.033 A of electricity, making it an energy-efficient choice.

Note

Eaton formerly known as Moeller
