171425 & SL7-100-L-RYG-24LED, Eaton LED Signal Tower, 3 Light Elements, Red/Yellow/Green, 24 V ac/dc, Сигнальная колонна

Eaton SL7 Complete Signal Towers

The Eaton SL7 complete safety tower improves the safety, productivity and availability of your machines and equipment. Two pre-fitted versions are available with either red/green or red/yellow/green light modules. Designed with an attractive rounded shape these new signal towers also feature IP66 rated fixtures that are impervious even to strong jets of water.

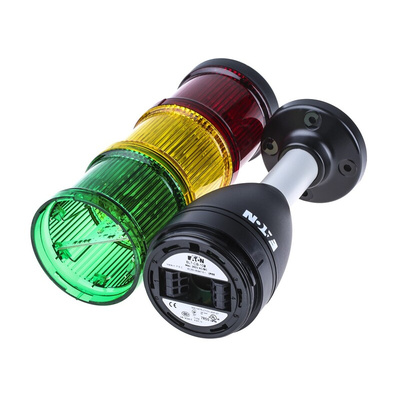

The SL7 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly (refer to the modular version for additional colours and sound units). The mounting adaptor uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.

Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features

Continuous light effect LED
Base module with foot and 100 mm tube
IP66 rated for protection against strong jets of water from any direction
70mm housing
Rated operational voltage 24 Vac/dc

Applications

Light beacons, also known as a Beacon Tower, Beacon light or warning light, are very versatile devices that are most commonly used to indicate various states of operation for a device or installation. They are visual signalling units that can indicate start, stop, fault signalling or call technical staff to quickly and easily signal when there is a problem, emergency or call to action which is especially important when audible signals can’t be heard in loud manufacturing or industrial environments. Light beacons are a way of achieving maximum safety using bright lighting (LEDs) and signalling with the use of different colours or light modes, like flashing, rotating or steady, to ensure the correct warning or signal message comes across. They are most commonly used in:

Industrial and manufacturing environments
Construction sites
Safety vehicles for traffic and law enforcement
Emergency vehicle lighting
Public areas like offices, shops and housing blocks

Standards

IEC/EN 60947-5-1.

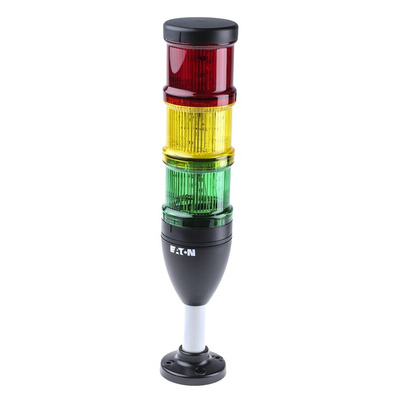

Eaton SL7-100-L-RYG-24LED Beacon Tower

This pre-configured beacon offers 3 LED colours including Red, Yellow and Green signals

Features and Benefits

The supply voltage is 24VAC/DC
Lens colour is red, yellow, and green
Continuous light effect LED
Base module with foot and 100mm tube
Number of light elements are 3
Steady light effect
Height is 356mm and base diameter is 72mm
Screw connection
Minimum temperature\t
Operating temperature ranges between -30°C and 60°C

Certifications

IP66 rated
IEC/EN 60947-5-1
CE certified
cULus approved
CSA-C22.2 No. 14-10 certified
