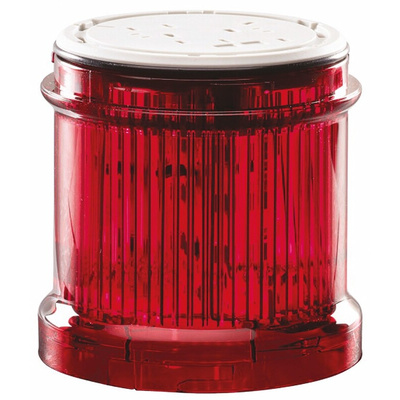

171463 SL7-L24-R, Eaton Red Steady Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP66

Eaton SL7 Modular Signal Towers

The Eaton SL7 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.
The SL7 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.
Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.
Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features and Benefits

• Red, yellow, green, blue, clear and orange (amber) colours available for the international market
• Lighting variants include continuous light, flashing light, strobe light and variable strobe light
• LEDs and high performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions
• High performance LEDs for extra brightness
• IP66 rated for protection against strong jets of water from any direction
• Modules can be changed easily with a simple twist
• Bayonet fitting for quick and easy mounting and dismantling
• Transport cover for cables and connections
• Available in 24 V, 120 V and 230 V versions

Standards

IEC/EN 60947-5-1.

Eaton Red LED Modular Signal Beacon, 24V AC/DC, Steady Light Effect - SL7 Series - 171463 SL7-L24-R

Enhance workplace safety with this red signal beacon from Eaton. It has a steady LED light that's visible in most lighting conditions, and its red lens colour makes it suitable for alerting personnel to hazards and emergencies. The beacon is made from a durable PC (polycarbonate) material that's UV-resistant, so it won't warp or fade when used in direct sunlight. For ease of assembling a complete signalling system, you can combine it with other visual and audible elements from the SL7 series. You'll commonly find this type of beacon used in factories or industrial automation systems.

• Wide operating temperature range of -30°C to +60°C for use in challenging environments
• IP66 (ingress protection) rating indicates protection against dust and high-pressure water jets
• Compact dimensions of 61 (height) x 73mm (base diameter) to take up minimal space

How do I attach this beacon to other units?

The beacons and sounder modules in the SL7 series are simple to stack together thanks to their bayonet fittings. You can quickly and easily change the configuration of your signal tower by twisting the units off and stacking them back together again.

Note

Eaton formerly known as Moeller
