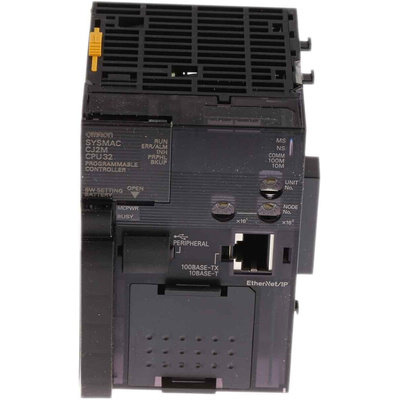

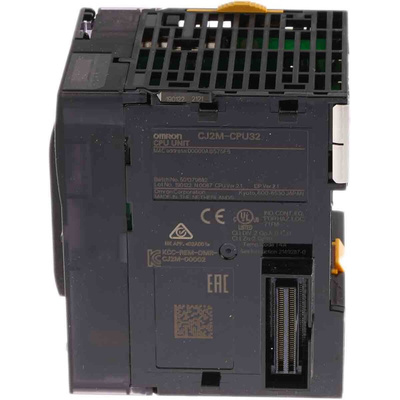

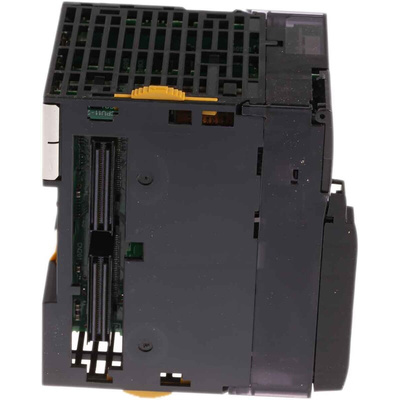

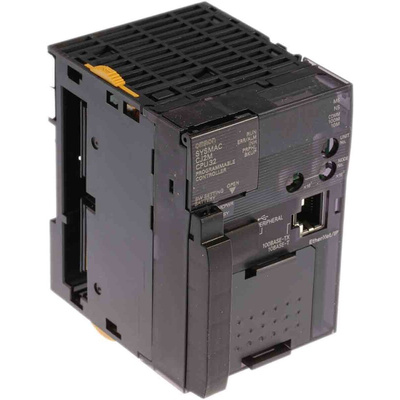

CJ2MCPU32, Omron CJ2M Series PLC CPU for Use with CJ2 Series, DC Input, ПЛК

Omron Programmable Logic Controller

The Omron CJ2M is a programmable logic controller(PLC) with pulse output and Ethernet networking computer interface device. It has 10K steps program capacity and 2,560 points. This PLC is for use with CJ2M Series. It has various attributes like faster function block calls and execution, faster interrupt handling and less overhead time that significantly improves its execution time. This module provides high-speed counters, interrupt inputs and pulse train/PWM outputs. It has added execution memory for function blocks that allow structured, object-oriented programming. It has a provision for adding a serial option module to RS-232C or RS-422A/485 communications ports. It supports different coding methods like instruction list, ladder logic, structured text and SFC.

Features and Benefits

USB for plug and play access to the PLC
Pulse I/O modules add position control functions
Increased performance, and increased memory capacity available with or without an Ethernet port
User-friendly programming, faster debugging
Faster processors with logic instruction execution time is reduced to 40ns
Choice of serial port plug-in
Operating temperature ranges between 0°C and 55°C
Data memory capacity of 160K words

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

CE
cULus approved
Lloyd approved
NK certified

Datasheet
