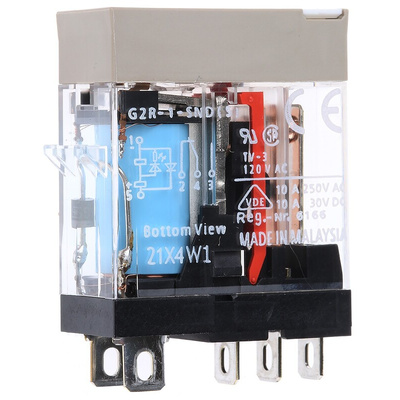

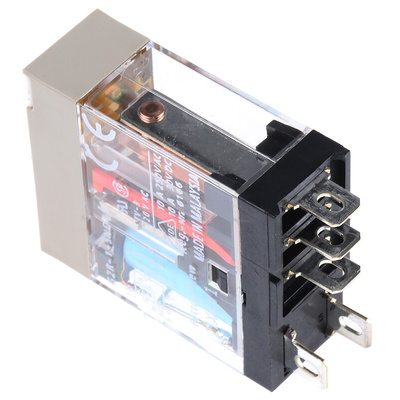

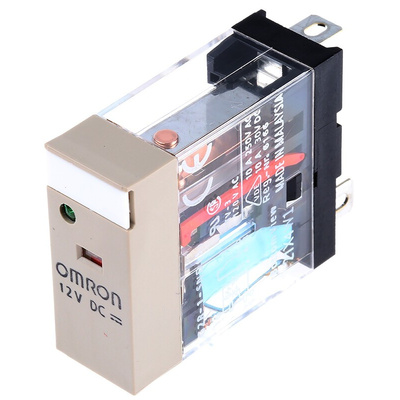

G2R-1-SND DC12(S), Omron Plug In Power Relay, SPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

G2R-1-SND-12DC(S) Part Number G2R1SND12DC(S) – General Purpose Relay / Solid State Relay.

The G2RS Series of relays cover wide ranging interface applications including a range of compatible sockets, crossbars, mounting tracks, end plates and spacers.
•\tModel with an (S) suffix = Mechanical operation indicator and nameplate.
•\tGeneral purpose solid State relay applications.
•\t1 Pole
•\tS = Plug-in terminals / Push-in plus.
•\tLED indicator and diode.
•\tDiode suppression.
•\tLED lights green for dc coil voltage and red for ac voltage types.
•\tRated coil voltage 12 V dc.
•\tSPDT Single contacts.
•\tSlim, space saving, robust. 16 mm width including sockets.
•\tReduced wiring up to 60%.
•\tHigh switching power. 1-Pole 10 A.
•\tEnvironmentally friendly cadmium free contacts.
•\treliable
•\tThere is no LED Indicator test button with this model.
•\tThe G2RS Relays enhanced features, flexibility complete with user friendly installation are an excellent choice of solid state relay.
When ordering this part ensure you add the coil voltage required and (S) for the mechanical operation.

G2R1SND12DC(S) Solid State Relay Added Features.

•\tRelay Contact material is Ag Alloy.
•\tRated current 43.2 mA.
•\tCoil resistance of 278 Ω.
•\tCoil Inductance (H) Armature OFF 0.98, Armature ON 2.35.
•\tPower consumption 0.53 W.
•\t1 Pole rated load 10 A at 250 V ac, 10 A at 30 V dc. (resistive load).
•\t1 Pole rated load 7.5 A at 250 V ac, 5 A at 30 V dc (inductive load).
•\tRated carry current and Max switching current 10 A.
•\tMax switching voltage 440 V ac, 125 V dc.
•\tContact resistance 100 mΩ max.
•\tDestruction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tMalfunction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tOperate set time 15 ms max.
•\tTransparent housing.
•\tRelays have CE marking.
•\tWeight of the relay is 20 g approx.

Suitable Connecting Sockets for the General Purpose relay/ Solid State Relay.

Part P2RF-05-PU, Stock number 1113066, Push in Plus terminal block. Track surface mounting socket.

Suitable Mounting Track, Track Connecting Socket for Solid State Relay.

•\tMounting track (L) 50 cm x (T) 7.3 mm, PFP-50N, Stock number 8278400.
•\tMounting track (L) 1 m x (T) 7.3 mm, PFP-100N, Stock number 8278403.
•\tMounting track (L) 1 m x (T) 16 mm, PFP-100N2, Stock number 8278406.

Solid State Relay Suitable End Plate.

•\tPFP-M, Stock number 8278419.
•\tWhen DIN Rail mounting you must use an end plate.

Solid State Relay Suitable Spacer.

•\tPFP-S, Stock number 8278412.
