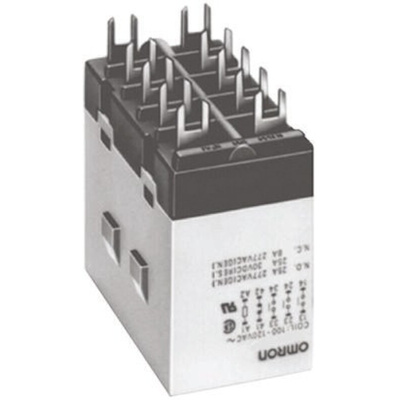

G7J-3A1B-PZ DC24, Omron PCB Mount Power Relay, 3PDT, Реле

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

G7J-3A1B-PZ 24DC SSR – Solid State Relay, High Capacity Power Relay.

The G7J-3A1B-PZ 24DC relay includes a miniature hinge providing maximum switching power for motor plus resistive and inductive loads. This multi-pole SSR –Solid state relay is used like a contactor.

Feature and Benefits G7J-3A1B-PZ 24DC SSR – Solid State Power Relay.

•\tPSB Mounted (solder PCB terminal manually).
•\tContact 3PST-NO (normally open)/SPST-NC (normally closed).
•\tBifurcated contact structure.
•\tHigh capacity.
•\tHigh dielectric strength.
•\tUsed like a contactor.
•\tMaximum switching power for motor loads.
•\tNo contact chattering.
•\tWith stands more than 4 kV between contacts with different polarity.
•\tFlame resistant.

Coil Rating.

•\t24 V dc.
•\tRated current 83 mA.
•\tCoil resistance 288 Ω
•\tMust operate voltage 75% max of rated voltage.
•\tMust release voltage 10% minimum of rated voltage.
•\tMax voltage 110% of rated voltage.
•\tPower consumption approx. 2 W.
Rated coil and current resistance are measured at a coil temperature of 23°C.
Maximum voltage is applicable to the relay coil at 23°C.

Additional Features of G7J-3A1B-PZ SSR – Solid State Relay, Power Relay.

•\tContact resistance 100 mΩ.
•\tOperate and release time 50 ms max.
•\tDielectric strength 4000 V ac, 50/60 Hz 1 min between coil and contacts and between contacts of different polarity. 2000 V ac, 50/60 Hz 1 min between contacts of the same polarity.
•\tVibration resistance – destruction, 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tVibration resistance – malfunction, NO 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude). NC 10 to 26 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tShock resistance – destruction, 1000 m/s².
•\tShock resistance – malfunction, NO 100 m/s², NC 20 m/s².
•\tOperating temperature –ambient, -25°C to 60°C.
•\tWeight – PCB terminal 140 g approx.
Values above are all initial values. Contact resistance was measured with 1 A at 5 V dc using drop voltage. Must operate and release times measured with an imposed rated voltage with any contact bounce ignored at an ambient 23°C.

SSR – Solid State Relay Application Examples.

•\tCompressors for air conditioners.
•\tSwitching controllers for power tools.
•\tLamp controls.
•\tMotor drivers.
•\tPower supply switching controllers.
•\tPower controllers for food packing, food processing equipment.
•\tPower controllers for inverters.
