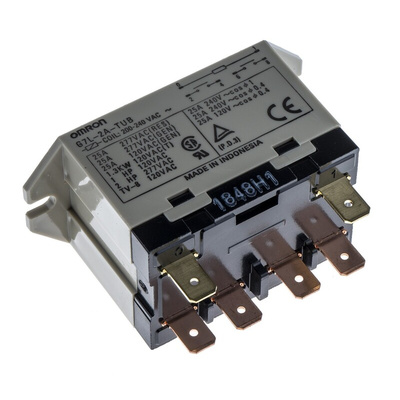

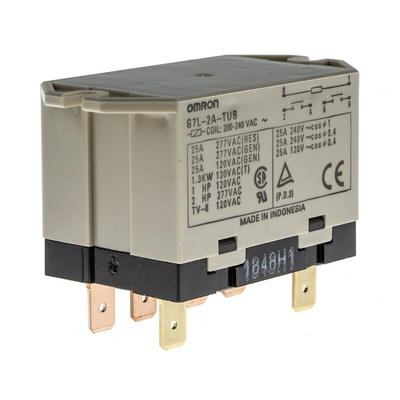

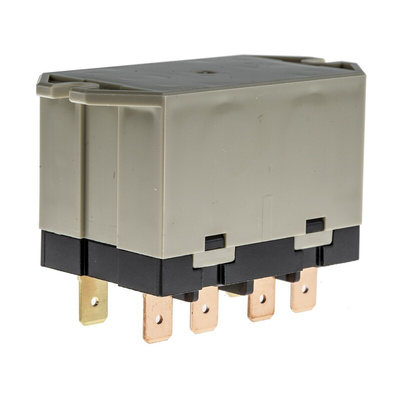

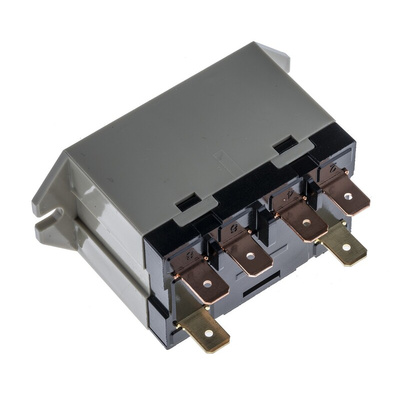

G7L-2A-TUB AC200/240, Omron Plug In Power Relay, DPST, Реле

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

G7L2ATUB 200/240AC Multi-Pole Power SSR – Solid State Relay.

The G7L relay high capacity SSR – Solid state relay handles momentary voltage drops plus is supplied with a double-break mechanism. The miniature size provides maximum switching power with inductive loads, wide ranging applications plus confirms to UL, CSA, TUV meeting IEC950.

Features and Benefits G7L-2A-TUB SSR – Solid State Relay (power relay).

•\tHigh-dielectric strength relay.
•\tCompatible with momentary voltage drops.
•\tNo contact chattering AC Activated coil.
•\tMiniature size.
•\tMaximum switching power (inductive loads).
•\tFlame resistant (UL94V-O).
•\tSafety design contact gap 3 mm.
•\tUpper bracket mounting.
•\tContact DPST- NO (normally open).
•\tQuick connect terminals.
•\t2 Poles.
•\tNo test button with this model.
•\tCoil voltage 200/240 V ac.
•\tRoHS Compliant.

Coil Rating Features G7L-2A-TUB SSR – Solid State Relay (power relay).

•\tRated current 8.5 to 10.2 mA (measured at coil temp 23°C).
•\tMust operate voltage 150 V.
•\tMust release voltage 36 V.
•\tMax permissible voltage 264 V.
•\tPower consumption 1.7 to 2.5 VA (60 Hz) approx.

Contact Rating G7L-2A-TUB SSR – Solid State Relay (power relay).

•\tContact type double break.
•\tContact material Ag alloy.
•\tRated load 25 A at 220 V ac.
•\tRated carry current 25 A.
•\tMax switching voltage 250 V ac.
•\tMax switching current 25 A.

Additional Features G7L-2A-TUB SSR – Solid State Relay (power relay).

•\tContact resistance 50 MΩ max (50V dc, 1 A drop method).
•\tOperate and release time 60 ms max.
•\tInsulation resistance 1000 MΩ min.
•\tVibration resistance destruction and malfunction, 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tShock resistance destruction 1000 m/s². Malfunction 100 m/s².
•\tOperating temperature ambient -25°C to 60°C.
•\tRelay weight 90 g approx.

Suitable Connecting Sockets.

•\tDIN Rail front mounting socket – part number P7LF-06D – stock number 376105.

Suitable retaining Clip – E Bracket.

•\tPart number R99-07 for G7L – stock number 2048212.

Applications.

•\tCompressors for air conditioners.
•\tHeating switching controllers.
•\tSwitching controllers for power tools, motors.
•\tPower controllers for water heaters.
•\tPower controllers for dryers.
•\tLamp controls, motor drivers, power supply switching in copy machines, facsimile machines, office equipment.
•\tLighting controllers.
•\tPower controllers for packers or food processing equipment,
•\tMagnetron control in microwaves.
•\tPower controllers for Uninterruptible power supply (UPS).
