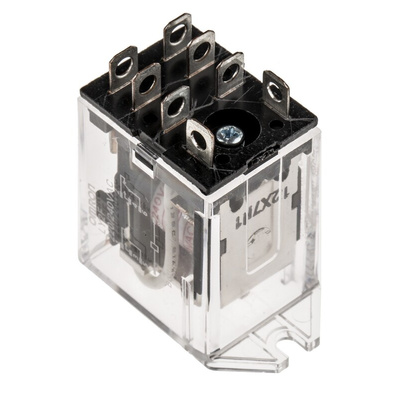

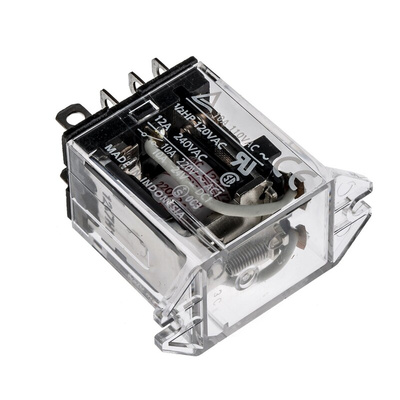

LY2F AC220/240, Omron Flange Mount Power Relay, DPDT, Реле

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

LY2F 220/240AC Bi-Power General Purpose SSR – Solid State Relay.

The LY2F model solid state relay is a standard general purpose relay that complies with the Electrical Appliances and Material Safety Act. This model has 2 poles, single contacts plus is case surface mounted.

Features and Benefits of the LY2F General Purpose Standard SSR – Solid State Relay.

•\tGeneral purpose relay.
•\tCompact relay.
•\tBi-Power.
•\tCase surface mount (upper mounting, plug in/solder). (Use M3 screws to attach surface mount).
•\t2 Poles DPDT.
•\tSingle contacts.
•\tArc barrier providing arc interruption.
•\tCoil voltage 220 to 240 V ac.
•\tSingle and double poles include AC4 and DC2 ratings.

Coil Rating LY2F SSR – Solid State Relay.

•\tRated voltage 220/240 V ac.
•\tMust operate voltage 80% max of rated voltage.
•\tMust release voltage 30% min of rated voltage.
•\tMax voltage 110% of rated voltage.
•\tPower consumption 0.9 to 1 VA (60 Hz) approx.

Contact Ratings LY2F SSR – SSR - Solid State Relay.

•\tRated current 50 Hz 4.8/5.3, 60 Hz 4.2/4.6 (MA).
•\tCoil resistance 18790 Ω (at a coil temperature of +23°C).
•\tCoil inductance armature OFF 83.5, armature ON 136.4.
•\tRated resistive load 10 A at 110 V ac, 10 A at 24 V dc.
•\tRated inductive load 7.5 A at 110 V ac, 5 A at 24 V dc.
•\tRated carry current 10 A.
•\tMax contact voltage 250 V ac, 125 V dc.
•\tMax contact current 10 A.
•\tRelay material AgSnin.

Additional Features LY2F SSR – SSR - Solid State Relay.

•\tContact resistance 50 mΩ max.
•\tOperating and release time 25 ms max.
•\tVibration resistance destruction and malfunction 10 to 55 to 10 Hz, 0.5 mm single amplitude (1 mm double amplitude).
•\tShock resistance destruction 1000 m/s², malfunction 200 m/s².
•\tP Value failure rate 100 mA at 5 V dc (measured at switching frequency 120 operations per min).
•\tOperating temperature ambient -25°C to 55°C, no icing or condensation.
•\t2 Pole electrical life 500000 operation minimum.

Suitable SSR – Solid State Relay Socket.

•\tPart number PTF08A-E, stock number 329884 (finger protection, track or screw mounting, use forked terminals).

Suitable Retaining SSR – Solid State Relay Clip.

•\tPart number PYC-A1 –Pair-, stock number 466447 (used with a socket).

Used for General Purpose Applications.
