61FGPN224ACCE, Omron Conductive Level Controller - DIN Rail Mount, 24 V ac 1, Контроллер уровня

8184276
Номер производителя: 61FGPN224ACCEПроизводитель: Omron
Цена за шт.
25071.00 руб. (С НДС) *
Количество 5+
Цена 24306.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

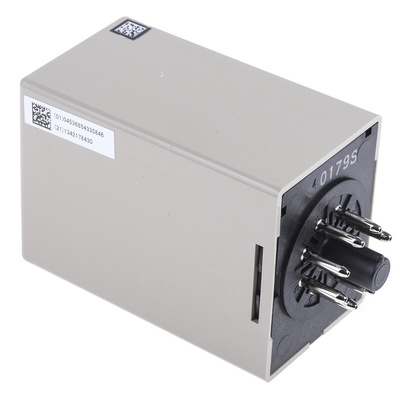

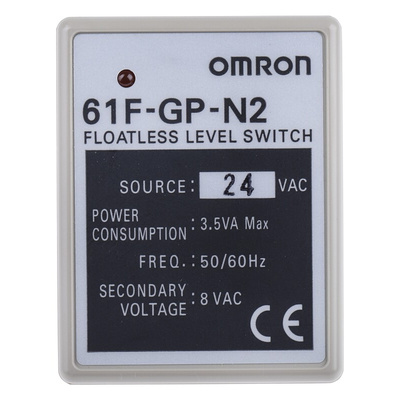

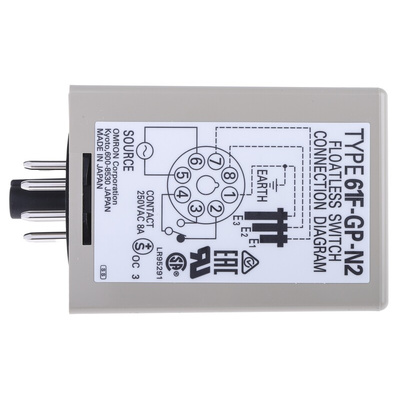

Omron Level Controller

The Omron compact plug-in conductive level controller is a single input and DIN rail mount device. The single-level control is relay de-energises when the liquid level drops below the set level electrode and two-point level control is relay de-energises when the liquid level drops below the low-level electrode and energises when the level reaches the high-level electrode. It requires a 24VAC power supply. The liquid level relay reused to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use.

Features and Benefits

Inter electrode voltage is 8VAC
Power consumption approximately is 3.5VA maximum
Operating resistance is 4kohm ON
Ideal for level control of any conductive liquid
Easy installation on DIN rail
Low voltage (AC) electrodes
Full surge protection
Response time Operate: 80ms max and Release: 160ms max.

Applications

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a systems
Control of media mixing ratios
Control of liquid levels

Certifications

UL approved
CSA certified

Техническая спецификация
pdfConductive Level Controller 61F-GP-N2 Data Sheet
Вид монтажа:
Крепление на DIN рейку
Габаритная ширина:
38мм
Длина общая:
49.4мм
Количество входов:
1
Напряжение питания:
24 В перем. тока
Общая глубина:
80мм
Пробники:
8В перем. тока
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-10°C
