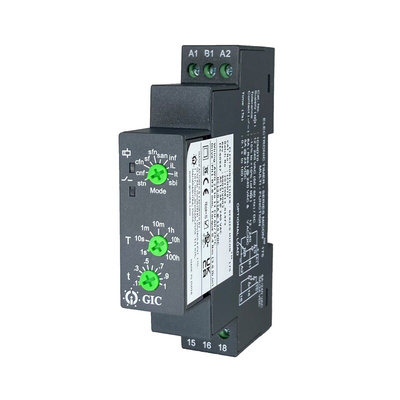

1CMDT0, GIC DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 0.1 s → 100h, SPDT

GIC Multi-function Timer Relay

The GIC multi-function timer relay is solid-state, compact equipment with high precision. It performs different delay functions like accumulative delay on signal, cyclic off/ on, impulse on/ off, leading-edge bi-stable, leading-edge impulse, signal off/ on, signal on/ OFF delay, and trailing edge impulse off in the range of 0.1 seconds to 100 hours. This relay has a wide range of programming features that provide the user with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its affordability and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

Fine adjustment of the selected time range
1C/O SPDT contact configuration with relay output 8A
Multi-voltage range is 12VAC to 240VAC and 12VDC to 240VDC
Covers a wide AC and DC voltage range for added installation flexibility
Time delay is reset of 200ms
10 different functions available
LED Indications for power and relay status
ON time and OFF time settings can be independently set for further customisation for your application
Low power consumption helps to keep running costs down

Applications

Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

UL approved
IP20 rated
CE certified
cULus approved
IEC 61000-3-2
ESD IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
IEC 61000-4-29
CISPR 14-1
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-27
