60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

•90-W models have an indication monitor that conforms to UL Class 2 Output standards
•New models with screwless terminal blocks and indication monitor
•3-digit, 7-segment status display

Note

Approvals

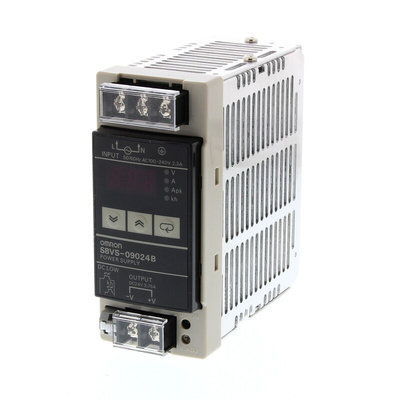

Part Number S8VS-09024A

The S8VS Switch mode, Din Rail mounted power supply is a covered type, screw terminal block display monitor. S8VS-09024A has a power rating of 90 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 24 V ac. This Sinking undervoltage alarm model is natural air cooling. The S8VS-09024A does have a maintenance forecast monitor.

Features and Benefits.

•Covered type power supply
•Screw terminal
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 90 W
•Output voltage 24 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 3.75 A
•Harmonic current emissions
•Efficiency 83% min.
•Under-voltage alarm output – open collector, 30 V dc, 50 mA
•Sinking (NPN)
•Maintenance forecast monitor
•RoHS compliant including Lead Free construction
•Weight 490g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

UL 508/60950-1, , CSA C22.2 No. 107.1/60950-1 EN50178 (=VDE 0160)
Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used),

Switch Mode Power Supply S8VS Data Sheet
