88981106, Crouzet em4 Local PLC CPU Starter Kit - 16 Inputs, 10 Outputs, Modbus with accessory Networking, USB Interface, ПЛК

Crouzet PLC CPU

The Crouzet em4 series alerts B26 nano programmable logic controller (PLC) has 16 digital inputs (including 4 High Speed, 4 analogue 0-10V/potentiometers and 4 analogue 0-10 V/4-20mA) and 10 digital outputs (including 2 solid states 0.5A PWM, 2 relays 6A and 6 relays 8A). It has a supply voltage rating of 24VDC with 16 digital inputs (4digital, 12 digital/analogue) and 10 digital outputs (2 PWM, 8 relays). This starter kit comes with the very compact and easy to program PLC, with 26 I/Os. It communicates with maximum16 Ethernet or with other devices with the Ethernet Modbus TCP/IP standard protocol client and server. It is possible to program and debug your PLC from anywhere on the Ethernet local network. It also provide simplified addressing process between two em4.
em4 Ethernet starter kit includes:

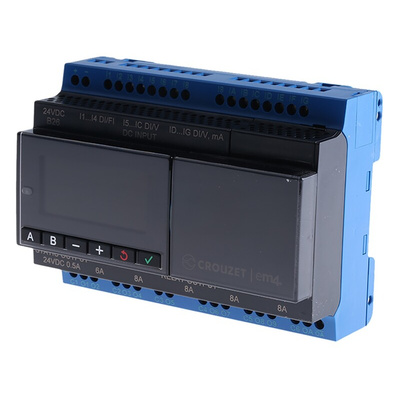

1. em4 Ethernet nano-PLC CPU
2. 3m Programming Cable PC
3. em4 soft (USB Key)

Features and Benefits

4 lines with 18 characters per line with highly visual display
Large memory space for application and remote functions program
Manage timed or trigger based data exchange between devices via Modbus TCP/IP Network
Receive scheduled simple data logs via email or FTP
Send email alerts fully controlled by the application program
Operating temperature ranges between -20°C and 60°C

Applications

Industrial automation
Robotics
Automobile industry

Certifications

CE
cULus listed
IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001/108/EC EMC directive
IP40 on front panel
IP20 on terminal block

(VIDEO) em4 Crouzet Automation new concept

User Guide

RS OUR OFFER - CROUZET em4

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
