Fluke I430-FLEXI-TF-II Power Quality Analyser Clamp, Accessory Type Flexible AC Current Probe, For Use With Fluke

8187357
Номер производителя: I430-FLEXI-TF-IIПроизводитель: Fluke
Цена за шт.
152100.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

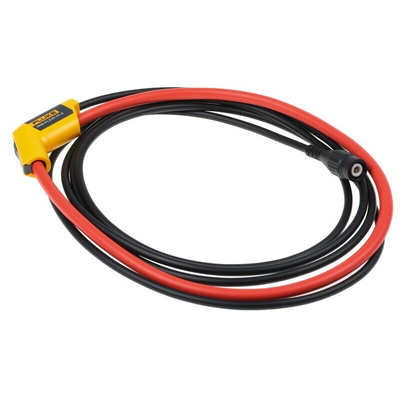

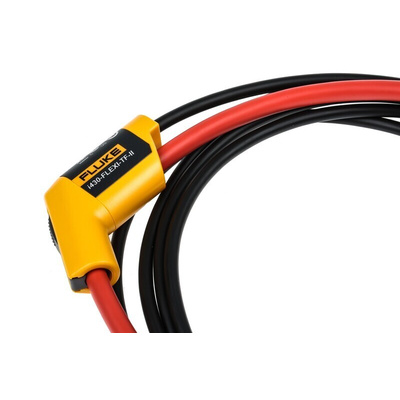

i430-Flexi-TF-II 6000A Flexible AC Current Probe

The i430-Flexi-TF-II flexible AC current probe is optimized for current measurement on thick and hard to reach conductors. The i430-Flexi-TF-II is a flexible AC current probe for use with the Fluke 430 series Power Quality Analyzers including Series II.

Measuring range: 0.5 to 6000 A ac
Bandwidth (-3 dB): 10 Hz to 10 kHz
Output signal: 86.6 mV at 1000A/50Hz (on 1 MΩ), 85.0 mV at 1000A/50Hz (on 50 kΩ)
Maximum non-destructive current: 100 kA (50/60 Hz)
Transducer length: 610 mm (24 in)
Transducer diameter: 7.5 mm (0.3 in)
Minimum bending radius: 38 mm (1.5 in)

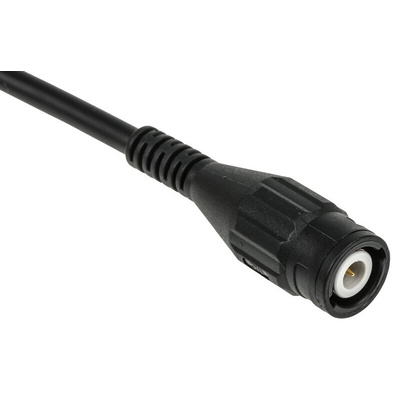

Cable length from transducer to BNC: 2.5 m (98.4 in)
Complies with: IEC 61010-1: Pollution degree 2, IEC 61010-2-032: 1000V CAT III/ 600V CAT IV, IEC 61010-031

Supplied with

Instruction Sheet

Fluke Flexible AC Current Probe

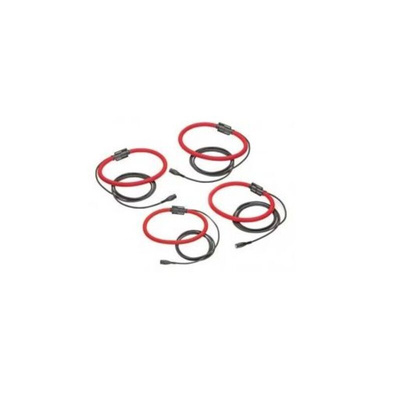

The Fluke flexible AC current probe has a current measuring range from 0.5A to 6000A. This lightweight measuring head allows quick and easy installation in hard to reach areas, without batteries or an external power source. It is also available as a pack of 4 pieces of the i430 current clamp, to be used for high current measurements. The Flex clamp fits around bus bars and large or hard-to-reach conductors. This 4 pack is perfect for use with 3-phase tools such as the Fluke 430 series.
Supplied with
Instruction Sheet

Features and Benefits

Bandwidth (-3dB): 10Hz to 10kHz
Output signal is 86.6mV at 1000A/50Hz (on 1 Mohm), 85.0mV at 1000A/50Hz (on 50kohm)
Maximum non-destructive current is 100kA (50/60Hz)
The transducer length is 610mm (24in)
The transducer diameter is 7.5mm (0.3in)
Minimum bending radius is 38mm (1.5in)
Cable length from transducer to BNC: 2.5m (98.4in)

Certifications

IEC 61010-1: Pollution degree 2
IEC 61010-2-032: 1000V CAT III/ 600V CAT IV safety rated
IEC 61010-031
UL94 approved
IP41 rated
CE
CSA certified

Техническая спецификация
pdfi430-Flexi-TF-II
Для использования с:
Fluke 433/434/435/434-II/435-II/437-II
Тип аксессуара:
Гибкий датчик постоянного тока
