COTEK Switching Power Supply, AE-800-24, 24V dc, 33.5A, 804W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

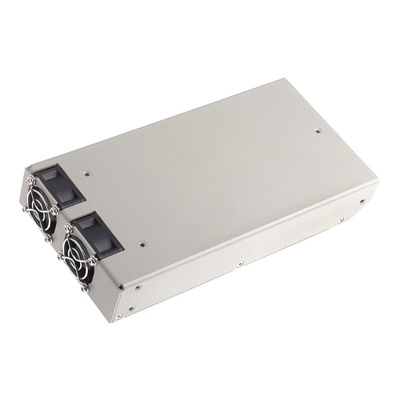

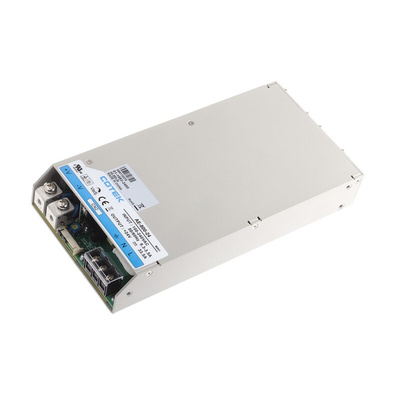

800W Switch Mode Power Supply Programmable Single Output AE-800 Series

The Cotek AE-800 series of switch mode power supplies is made of single output AC-DC converters. These switching power supplies come in fully enclosed cases with integrated cooling fans, compact size and high reliability, making the AE-800 series of switch mode power supplies an excellent choice when using a chassis mountable AC-DC converter in space critical applications.
Ideal Applications of this power supply include factory automation, off site test and measurement & communications equipment. Safety approvals and EMC fully comply with world wide requirements.

Universal mains input
Regulated, single outputs: 12V, 15V, 24V 30V, 36V 48V & 60V
Selectable +5V 0.5A or +9V 0.3A auxiliary output
800W AC-DC chassis mount converters
Global control via RS232
Multiple remote settings via RS232, RS485 & I2C
Programmable output voltage (0% to 105%)
Programmable output current (0% to 105%)
Remote On/Off, remote sense
High efficiency, high reliability, long life
-20°C to +60°C operation
Supplied with the JST Mating Connector

Standards

Certified EN 62368-1; UL62368-1
EMC conducted emissions Certified EN 55032

Approvals

cULus, CE, TUV

Supplied with

JST Mating Connector

Switch Mode - Cotek

Communication Protocol AE AEK ME Users Manual

AE-800 Series Data Sheet
