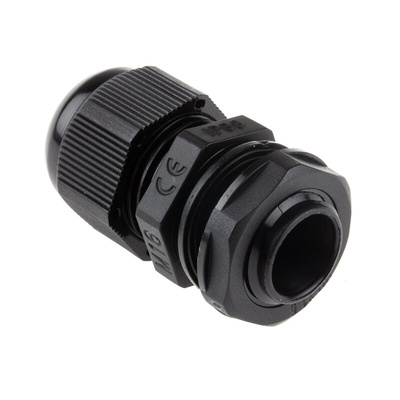

NGM16-BLK, HellermannTyton NGM Series Black Nylon Cable Gland, M16 Thread, 5mm Min, 10mm Max, IP68, Кабельный ввод

HellermannTyton IP68 M16 Nylon Cable Gland

From Hellermann Tyton, a range of M16 IP68 metric thread cable glands for use with unarmoured cable. Robust in construction, the dome top glands provide excellent cable retention and optimal strain relief ensuring a fully watertight seal is maintained. Installation is quick and easy, with no need to dismantle, simply insert the cable into the gland and tighten. Constructed from tough Nylon 66 the NGM series of cable glands have excellent environmental protection. They are ideal for outdoor applications or environments that are exposed to the elements and require a higher level of protection.

Features and benefits

• Nylon 66
• IP68 ingress protection
• M16 metric thread
• 5 mm to 10 mm cable clamping range
• For used with Non-armoured cable
• Available in black, red, white grey and light grey
• Locknut and sealing washer included

Applications

Cable glands are used in a wide variety of industrial applications to terminate and seal cable into electrical equipment, enclosures and conduit. They are vital in ensuring cables are fitted and retained correctly providing a secure and safe connection. Some of the most common areas are:

• Moving machine parts
• Electrical conduit boxes
• Robotics
• Automation and control panels
• Door entry systems

Environment

The NGM series of cable glands have an IP68 ingress protection rating and are fully sealed. The compression style glands are particularly useful in outdoor applications or harsh environments that can be exposed to moisture, water, dust and debris.

Accessories

A locknut and sealing washer is included with the Hellermann Tyton NGM cable glands.

Note

These glands are NOT designed to be used with steel wire armoured cable.

HellermannTyton Cable Gland, 16mm Thread Diameter, 1.5mm Thread Pitch - NGM Series - NGM16-BLK

Need an easy and effective way to finish off wires? Attach this cable gland from HellermannTyton. It seals the free end of a non-armoured cable where it meets a connector to an IP68 rating standard, protecting the join from corrosion and contamination. As the unit comes complete with a locknut, you can trust it's protected against accidental loosening, even when used in vibrating or moving systems.

Features & Benefits

• Standard M16 thread for quick and easy installation
• Performs in temperatures between -40°C and +100°C to suit demanding applications
• Wide cable diameter range between 5 and 10mm so it's a versatile choice

Applications

• Manufacturing industry
• Factory safety systems
• AV equipment

What's the difference between a cable gland and a connector?

Cable glands are for hard-wired or permanent applications only. Connectors or quick-disconnect ends allow you to plug wires in and pull them out.

Nylon Cable Gland Technical Datasheet and Drawing

Cable Gland Selection Chart
