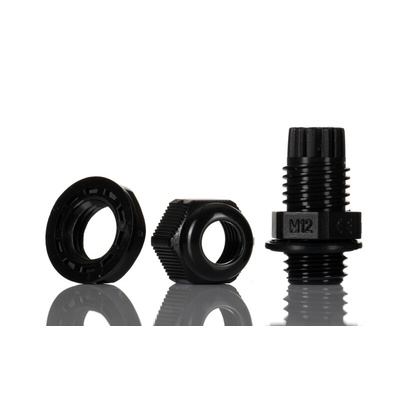

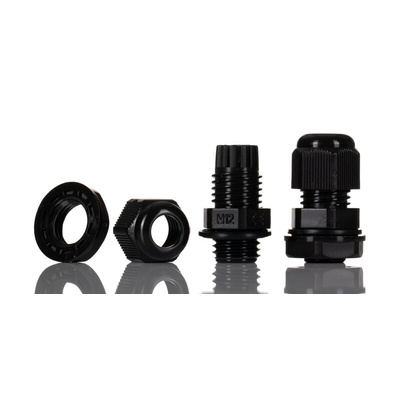

NGM12-BLK, HellermannTyton NGM Series Black Nylon Cable Gland, M12 Thread, 3mm Min, 6.5mm Max, IP68, Кабельный ввод

HellermannTyton Cable Gland, 31mm Length, 1.5mm Thread Pitch - NGM Series - NGM12-BLK

Securely fix wires to your enclosures with this cable gland from HellermannTyton. Simply thread your cable through it to benefit from all-around protection from contaminants and damage caused by pulling and twisting. As it accepts cable diameters between 3 and 6.5mm, it's a versatile choice. A locknut is included, so you can get to grips with setting up the gland straight away.

Features & Benefits

• Nylon 66 material resists corrosion, abrasion and mechanical stress, so you get a long service life
• M12 thread size for easy compatibility with industry-standard equipment
• IP68 rating means it's completely dust-tight and withstands temporary immersion in water up to a depth of one metre

Applications

• Telecommunications services
• Industrial manufacturing
• Construction industry

Can I use this cable gland in harsh conditions?

Yes. The unit delivers reliable performance in a temperature range between -40°C and +100°C, so it's ideal for use in harsh conditions.

Nylon Cable Gland Technical Datasheet and Drawing

Cable Gland Selection Chart
