LC2K1210F7, Schneider Electric LC2K Series Reversing Contactor, 110 V ac Coil, 3-Pole, 12 A, 5.5 kW, 1NO, 600 V ac, Контактор

Schneider Electric TeSys K (LC2K) 3 Pole Reversing Contactors.

Schneider electric provide you with solutions covering everything from industrial infrastructure and building industries from basic machinery and more intricate process systems. The Schneider Electric range of reversing contactors also includes non-reversing contactors, relays and protection relays. The TeSys K range of contactors provides you with reversing and non-reversing contactors from 0.06 kW to 5.5 kW and up to 4 Pole Contactor relays. The range is endless with solutions for motor management systems, thermistor protection plus modular contactors. Provide ranges of products offering various options to suit your many requirements.

TeSys K reversing contactors provide a complete range plus include non-reversing contactors. The TeSys K contactors offer the best performance, compactness ratio all with seamless integration in required applications.

• TeSys D is available as a reversing and non-reversing contactor.


• TeSys B is a bar contactor up to 900 kW.


• TeSys K contactors offered as reversing and non-reversing contactors.


• TeSys GC and GY modular contactors and DIN rail mount contactors.

Series Features.

• AC, DC, Low consumption voltage DC and silent control circuits available.


• 6 A, 9 A and 12 A current ratings available.


• 2.2 kw, 4.5 kw, 5.5 kW power applications in AC-3 and AC-4.


• Screw clamp, Faston connectors. Spring terminals, Pins for PCB (printed circuit boards) available.

Applications.

• Industry, Infrastructure, Building and many more.


• Control systems.


• Areas that are noise sensitive, disturbed mains supply, silent contactor.


• Compatible with programmable controller outputs, low consumption contactor.


• Switching / switch contactor or coil relays.


• Powering control and signalling equipment.

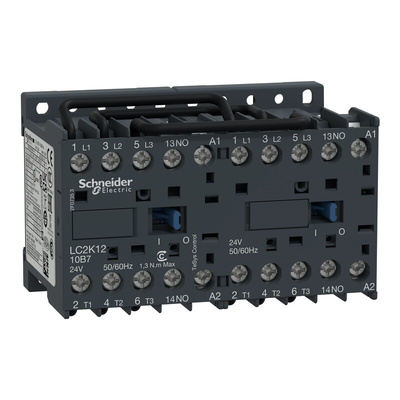

LC2K1210F7 TeSys K (LC2K) 3 Pole Reversing Contactor.

• Motor control, Resistive load applications.


• AC-4, AC-3, AC-1 Categories.


• Comes pre-assembled with a reversing power Busbar.


• Ue Rated Voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.


• Ie Rated current 20 A (at <= 440 V AC AC-1 for power circuit 16 A (at <= 440 V AC AC-3 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit.


• Motor power 4 KW at 480 V AC 50/60 Hz, 4 KW at 500...600 V AC 50/60 Hz, 4 KW at 660...690 V AC 50/60 Hz, 3 KW at 220...230 V AC 50/60 Hz, 5.5 KW at 380...415 V AC 50/60 Hz, 5.5 KW at 440 V AC 50/60 Hz.


• Circuit AC at 50/60 Hz.


• Overvoltage category III.


• Breaking 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.


• Mechanical interlocking.


• Screw clamp terminals.


• Mounting – DIN Rail, Plate.


• IP20 to VDE 0106.

Approvals

UL, CSA.

Standards

VDE 0660, BS 5424, IEC 60947, NF C 63-110.
