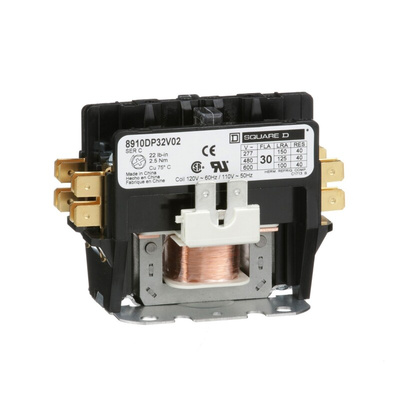

8910DP32V02, Schneider Electric DPA Series Contactor, 110 V ac Coil, 2-Pole, 30 A, 2NO, 600 V ac, Контактор

Schneider Electric Contactor, 2 Pole, 600V Contact Voltage Rating - DPA Series - 8910DP32V02

Use this contactor from Schneider Electric to control electric motors in your industrial system. It has 2 NO poles that close when the switch is actuated, shutting off power to downstream machinery. A current rating of 30A means it supports high-powered connections for efficiency. Due to its compact dimensions of 50.8 (L) x 58.7 (W) x 62.2mm (D), the device takes up minimal space in busy setups. As it has a robust coil voltage of 120V AC at a frequency of 60Hz, this is a suitable option for high-voltage systems.

Features & Benefits

• Wide operating temperature range of 0°C to +65°C for use in challenging environments
• Electrical life of 200,000 operations for reliability
• DIN mounting option for simple installation without tools
• Quick connection of binder head screws and terminals for straightforward wiring
• Plastic body ensures protection from electric hazards and boosts user safety

Applications

• HVAC systems
• Data processing
• Electric furnaces
• Industrial heaters

What's termination method does this contactor use?

The unit has a screw-down termination method, so connections are vibration-proof and installation is simple without standard tools.

Schneider Electric NEMA Style Contactors

Datasheet

Datasheet - 8910DP32V02
