Bi1-EG05-Y1, Turck Inductive Barrel-Style Proximity Sensor, M5 x 0.5, 1 mm Detection, NAMUR Output, 8.2 V dc, IP67, Индуктивный датчик приближения

M5 Threaded Barrel Sensors

High quality Turck Banner M5 x 0,5 stainless steel threaded barrel inductive sensor for precise and contactless metal detection.

DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)

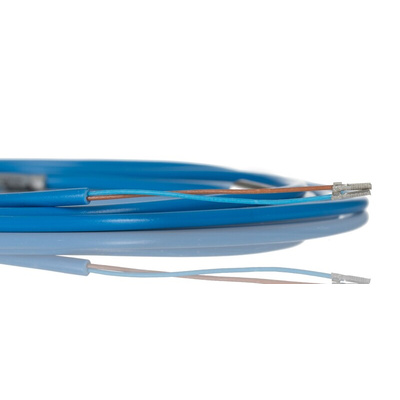

Cable connection

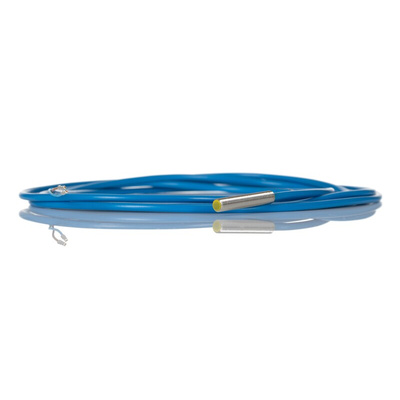

Turck Proximity Sensor, Flush Mounted, Stainless Steel Housing - Bi1-EG05-Y1

Want a trusty troubleshooter? Pick out objects in your industrial equipment with speed and accuracy courtesy of this proximity sensor from Turck. It uses inductive technology to spot metals and sends control signals to your machine to slow down, ramp up or stop, depending on your design needs. The unit's stainless steel housing holds its own against impact and corrosion, so you can rest assured of reliable service, even in harsh environments. Its M5 threaded barrel makes assembly a walk in the park, as all you need is a wrench.

Features & Benefits

• Detection range of 1mm for use in short-span applications
• Operates optimally in temperatures ranging between -25°C and +70°C, making it suitable for challenging settings
• MTTF of 6198 years assures you of long-lasting performance
• Flush mounting means it doesn't get in the way of machine operation
• IP67 rating shows it's dustproof and resists immersion in up to 1m of water for 30 minutes

Applications

• Material handling
• Food production plants
• Water treatment facilities

How do I monitor this proximity sensor?

This unit features LED indicators that make it easy to keep an eye on its operating status.

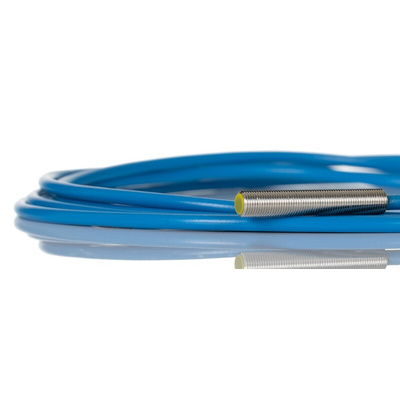

Stainless Steel Barrel

IP67 rating
LED status display
Flush mounting

Inductive sensor BI1-EG05-Y1 Data Sheet

Datasheet
