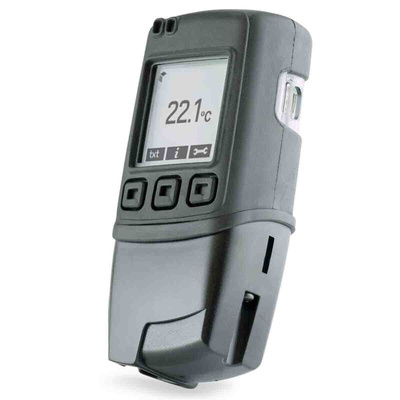

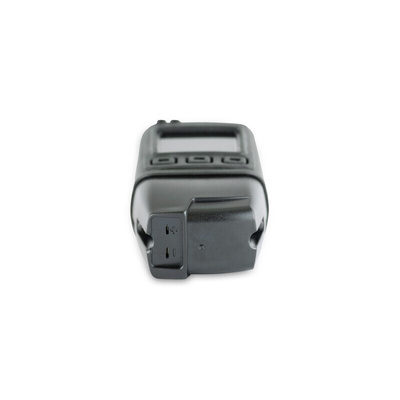

Lascar EL-GFX-TC Thermocouple Data Logger with Graphic Screen

Lascar's EL-GFX-TC stand-alone data logger measures and stores more than 250,000 temperature readings from a K, J or T-type thermocouple at a resolution of 0.1°C (0.2°F). The instrument comes supplied with a K-type thermocouple capable of measuring from -80 to +400°C (-112 to +752°F). The user can easily set up the logger, and view downloaded data, by plugging the data logger into a PC USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for detailed analysis. The data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host PC. Users can reset the maximum / minimum reading using the on-screen menu; this introduces an ’event marker’ into the data which can later be viewed in the graphing software (’Mark Events’ option) and the data file after download.

Compatible with K, J and T type thermocouples
Logging rates between 2 seconds and 1 hour
Immediate, delayed, push-button or temperature-triggered start mode
Graphic LCD shows real-time readings, graph and current status
Stores more than 250,000 readings

Supplied with

K-type thermocouple, lithium metal battery (x2)

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
