Lascar EL-GFX-2+ Data Logger for Humidity, Temperature Measurement, Логгер

Lascar Data Loggers

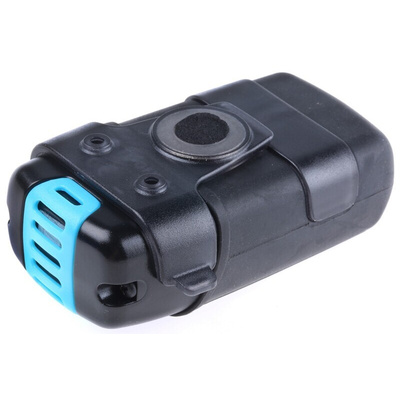

The Lascar EL-GFX-2+ standalone data logger measures and stores over 250,000 temperature and humidity readings between -30°C and 80°C (-22°F to 176°F) and 0 to 100% RH range at a resolution of 0.1°C (0.1°F) and 0.1% RH. This data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. Users can reset the maximum/minimum reading using the on-screen menu. This introduces an ’event marker’ into the data which can later be viewed in the graphing software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
AA replaceable batteries (x2)

Features and Benefits

The measurement ranges between -30°C and 80°C (-22°F and 176°F)
Temperature measurement accuracy is ±2°C
Humidity measurement accuracy is ±5% RH
Logging rates between 10 seconds and 1 hour
Number of readings per channel is 2,52,928
Immediate, delayed, pushbutton or level triggered start mode
User-programmable audible alarm thresholds with highly visible LEDs
On-screen graphing, and menu options to start, stop, review and restart the logger in the field
Battery life is up to 4 months
Supplied with a 1/2AA two lithium metal batteries

Applications

Building and site monitoring
Outside environmental data
Housing and business premises
Museums and exhibitions

Certifications

IP67 Rated

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Lithium Battery Test Document
