Artesyn Embedded Technologies Switching Power Supply, LPS363-M, 12V dc, 30A, 240W, 1 Output, 120 → 300 V dc, 90, Источник питания

LPS360-M Series, Universal Input, 3x5 inch, Single Output

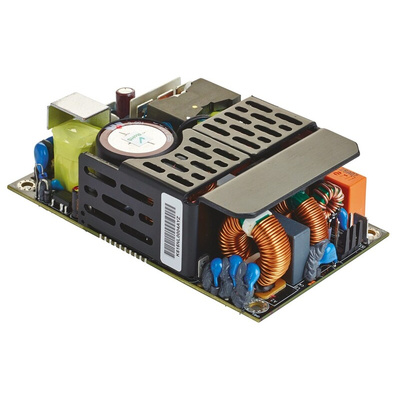

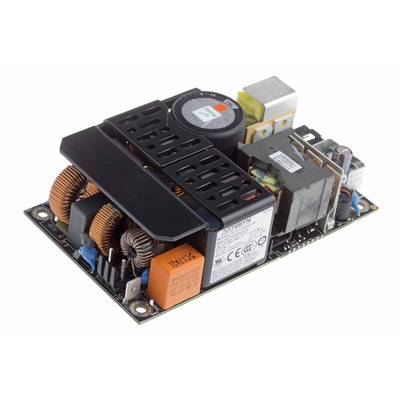

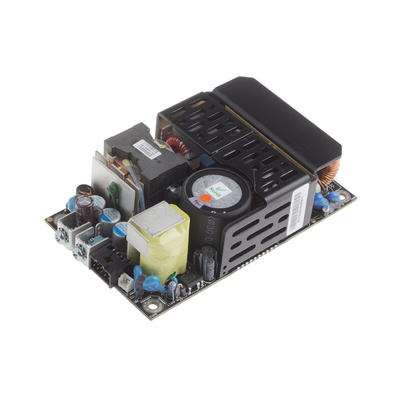

The Emerson Network Power LPS360-M is a series of open-frame, single output, AC-DC power supplies, the power supply also provides 12 V fan and 5 V standby outputs. The LPS360-M features ITE and medical safety approvals and accept a universal input of 90–264 Vac or 120–300 Vdc. Comprehensive overcurrent, overvoltage and overtemperature protection is provided as standard. The LPS360-M power supplies have a full load efficiency of up to 92%. Depending on operating conditions, they provide up to 220W of output power with free air convection cooling and up to 360W with 400 LFM of forced air. Less than 1U high, the power supplies are ideal for light industrial systems as well as for non-patient contact medical applications.

Medical and ITE safeties
Active power factor correction
Less than 1U high
Remote sense
Power fail
Adjustable main output
Built-in Class B EMI filter
5 V Standby output
Remote Inhibit
PMBus commands
Digital I2C interface
Class I and Class II approved
Dual AC fuses

Standards

60950, 60601-1

Approvals

TUV, UL, cULus, CB, CE, CCC

360 Watt AC-DC Power Supply Data Sheet
