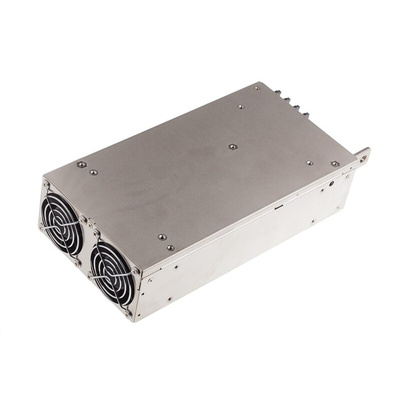

Artesyn Embedded Technologies Switching Power Supply, LCM1500L -T, 12V dc, 133A, 1.5kW, 1 Output, 90 → 264V ac, Источник питания

1500W, Switch Mode, Medical Approved, Single Output Embedded Power Supply - LCM1500

The Emerson Network Power LCM1500 Series is a very cost effective solution for single output high power requirements. This Power supply has a typical high efficiency of 89% and comes in a very convenient size. This Emerson AD/DC Power supply utilises a fan, for self contained thermal management at very low acoustic noise levels. The LCM1500 can be used in Industrial and Medical applications.

Convenient size 2.4 x 5 x 10 inches
Industrial and Medical safety approvals
-40°C to 70°C Operating Temperature
Typical efficiency 89%
Fan Noise ˂45dBA, 80% load 30C, off with inhibit
Leakage ˂0.3mA at 264 Vac
Total Max power 1500 W
Total Max Current 133 A
Sinlge output
3 years Warranty

Standards

EMI Class B, EN61000 Immunity, UL60950-1, UL60601, VDE60950-1, VDE60601

LCM1500L -T -Data Sheet
