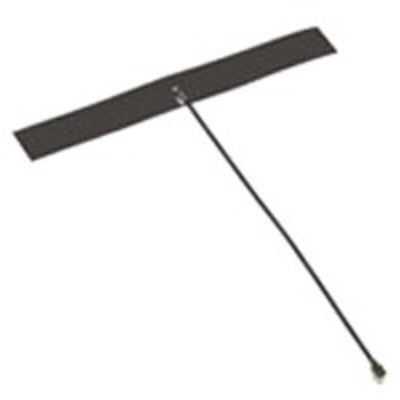

GSM Cellular 6-Band Standalone Antenna

The Molex 6-band Standalone Antenna offers communication over a range of cellular bands such as GSM850, GSM900, GSM1800, GSM1900, UMTS band-1 and LTE band-7. The antenna is used in a wide range of areas from medical to Industrial and a variety of wireless applications. Molex micro-coaxial cables come in lengths of 100mm (105263-0001), 150mm (105263-0002) and 200mm (105263-0003).

It is extremely compact and the cellular antennas have reflection coefficient values that are better than -7dB over these bands. They also have radiation efficiencies of 80% at the low band GSM850, GSM900 and 70% at the high band GSM1800, GSM1900 and LTE band-7.

Pull force 18N
Ground plane independant
RoHS compliant and halogen free
Polarization: Linear
Input Impedance: 50 Ohms
Max PWR: 2 W / 33 dBm
Operating Temperature: -30 to +75°C
Easy to use
Poly-flexible adhesive tape on the underside of antenna
Mates with the Molex micro-coaxial SMT Jack (RS 702-5425)

Molex Cellular Antenna, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) - 105263 Series - 105263-0003

This standalone antenna from Molex delivers a reliable solution for communicating across a range of cellular bands. It's an effective choice for use in healthcare and industrial environments, where it offers strong signal coverage and easy integration with smart meters, medical devices and other wireless applications. The antenna achieves ground plane independence to better avoid disruptions from land-ground induced currents, taking advantage of a balanced-feeder design that avoids the size limitations presented by PCBs (printed circuit boards). With a compact length of 106.7mm, it saves on space without losing performance.

• Compatible with RF (radio frequency) protocols of 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) for versatility
• Omnidirectional antenna directivity offers reliability and stronger connections
• Gain of 3dBi (decibels relative to isotropic) provides even and strong signals

Applications

• Hospitals
• Industrial processing
• Food and beverage processing

How do I mount this antenna?

This antenna can be fixed directly to the inside of your device's casing. Just remove the adhesive tape on the antenna's underside and press it onto your desired location. Mount the included coaxial connector to the device radio and you're set.

GSM (Global System for Mobile communications) Antennas

105263 Cellular 6 band Standalone Antenna
