Molex 105262-0002 Square Omnidirectional Telemetry Antenna with U.FL Connector, ISM Band, Антенна

ISM Standalone Antenna, dual-band 868 MHz/915 MHz

The Molex ISM standalone antenna range has three different micro-coaxial cable lengths 100mm (105262-0001), 150mm (105262-0002) and 200mm (105262-0003). It can be used for wireless applications which use the license-free 868MHz and 915MHz frequencies.

The ISM antenna from Molex gives enhanced technology “MobliquA™” and with its dual-band 868/915MHz frequency it is designed so that it can provide reflection coefficient values of -11dB to -16dB in both bands.
The ISM standalone antenna is ideal for applications that need high performance; this includes medical applications to Industrial applications such as remote sensors, smart meters, and wireless M-bus devices as well as ZigBee IEEE 802.15.4.

(ISM 868) Frequency Band: 863-870MHz
(ISM 915) Frequency Band: 915-928MHz
Patented MobliquA™ technology
Input Impedance: 50 Ohm (balanced)
Max PWR: 2W / 33dBm
RoHS compliant and halogen free
Operating Temperature: -30 to +75 °C
Easy to use
Poly-flexible adhesive tape on the underside of antenna

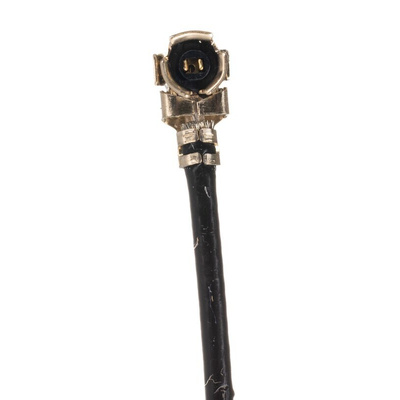

Mates with Molex Micro-coaxial SMT Jack RS 702-5425

Molex Telemetry Antenna, 1.3dBi Gain, 868 to 915MHz Frequency Range - 105262-0002

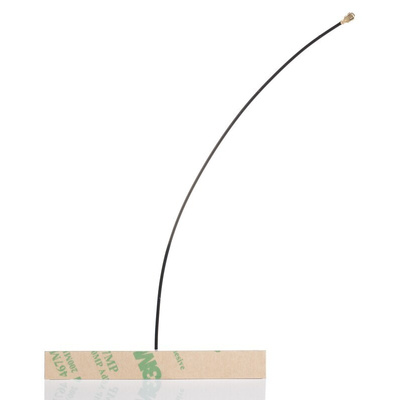

Whip your telemetry into shape with this omnidirectional antenna from Molex. Its length of 79mm and gain of 1.3dBi makes it a reliable way to pick up signals between 868 and 915MHz over short distances and from any direction. A self-adhesive strip means you can swiftly stick it to your desired surface. To give you flexibility over your antenna positioning, the unit comes with a 150mm cable that plugs into your radio or receiver.

• Works with LoRa, Neul and SigFox, Z-Wave and Zigbee protocols for easy compatibility with wireless and radio networks
• Halogen-free construction to maximise fire safety

Applications

• Remote sensors and controls
• Medical devices
• Smart metering
• Short-range tracking

What's an ISM-band antenna?

An ISM-band antenna like this one works with radio frequencies that are reserved specifically for industrial, scientific and medical applications and are designed to match ISM devices.

868MHz Antenna

105262 868, 915MHz ISM Standalone Antenna

Datasheet

Line Drawing -105262-0002
