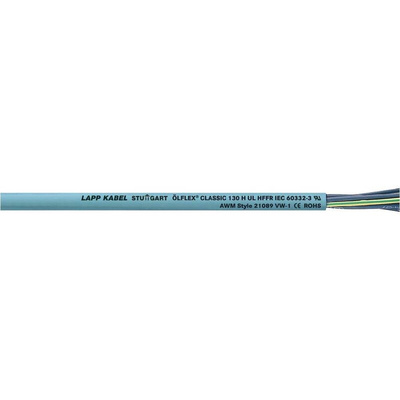

1123161, Lapp ÖLFLEX CLASSIC 130 Control Cable, 5 Cores, 4 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 11 AWG, Кабель

Ölflex Classic 130H Halogen Free Control Cable

From Lapp, this Olflex Classic 135 CH cable is a control cable for use in flexible applications and fixed installations under normal mechanical strain. With a small cable diameter and good flexibility, the cable is ideal for easy and space saving installations.

This HFFR cable is also flame retardant and halogen free, which makes it suitable for use in environments where public safety and property protection is a concern.

The cable is comprised of fine-wire strands of copper wire, with a halogen free core insulation and sheath. It is suitable for use in both dry and damp indoor environments.

Features and Benefits

• Flexible Cable
• Certified for maritime applications
• Flame-retardant according to IEC 60332-1-2
• Halogen-free according to IEC 60754-1
• Low smoke density according to IEC 61034-2
• Operating Temperature with occasional flex -25°C to +70°C
• Operating Temperature in fixed installations -40°C to +80°C

Applications

The Olflex Classic halogen free control cable is ideal for use in specialist applications such as;

• Public Transport
• HVAC Systems
• Industrial Machinery
• Stage and television studios
• For use in applications where humans and animals may be at risk of fire hazards
• Public buildings or areas e.g. airports, office buildings

Accessories

Olflex classic cables should be used with accessories that match their capabilities. As such, Lapp provide a halogen-free range of easy-to-install cable glands.

• 199-670 is an M12 Skintop Halogen Free Cable Gland
• 199-642 is an M16 Skintop Halogen Free Cable Gland
• 199-658 is an M20 Skintop Halogen Free Cable Gland
• 199-541 is an M25 Skintop Halogen Free Cable Gland
• 199-557 is an M32 Skintop Halogen Free Cable Gland

Standards

VDE certified

LAPP Control Cable, 300/500V AC Voltage Rating, 12.1mm Outer Diameter - ÖLFLEX® CLASSIC 130 HSeries - 1123161

Make light work of wiring your system with this control cable from LAPP. The lead's 4mm² cross-section stranded cores flex to fit its space, taking the hassle out of connecting devices in busy cabinets. Thanks to its copper wires, the cord keeps signals flowing reliably between machines. Low-profile cable entries are no obstacle with this product's 12.1mm outer diameter. As the component uses halogen-free insulation, there's no need to worry about toxic fumes forming if it's heated.

Features & Benefits

• Flame-retardant LSZH jacket stands up to intense industrial conditions
• Includes drain wire to minimise the risk of hazardous built-up charge
• Numbered cores for easy connection identification

Applications

• Semiconductor manufacturing
• Automotive industry
• Food and beverage production

Can I use this cable in my outdoor setup?

Yes. This lead's sheath is UV-resistant, so it holds its own against direct sunlight.

Datasheet

Cable Selection Guide
