TA327401, Wachendorff Counting Direction, Hold, Lock, Setpoint Input Counter, 8 Digit, 100kHz, 24 → 230 V ac/dc, Счетчик

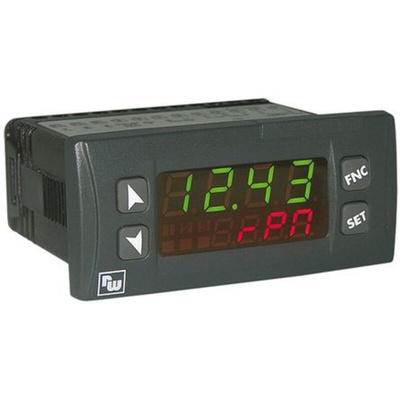

TA327401 - Tachometer

The compact small tachometer TA327401 allows to read the frequency (max 100 kHz) of a signal from single or double (bidirectional encoder) input. 2 universal digital inputs are available (NPN/PNP/contact) for external commands like output activation or Hold/ Stop current visualization; one input it is also analogue in order to allow setpoint modification by external potentiometers.
Due to the two different modes and the indication of the rotating direction, the tachometer is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.

Tachometer with rotating direction indication in 32 x 74 mm format
Input frequency up to 100 kHz
2-line LED display
Two red indicators for status relays outputs and a yellow indicator for serial communication
Easy programming by front keys or software
Two relay outputs
Universal AC/DC power supply
Programming kit with USB cable available (stock-no. 819-9745)

Panel Mounting 74x32

Tachometer TA327401 - Data Sheet
