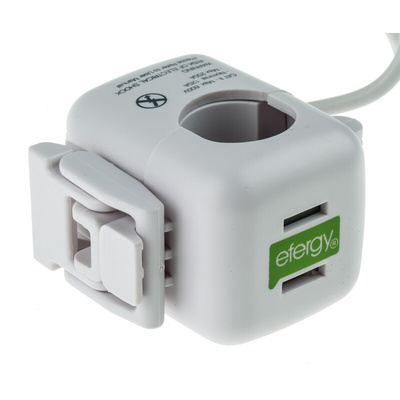

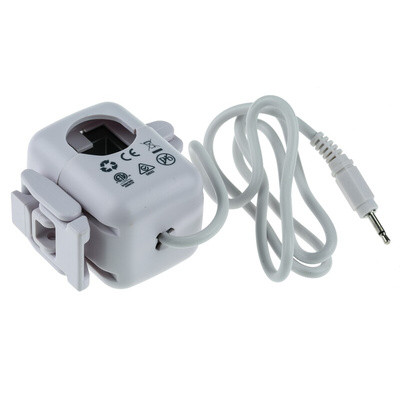

140AS, Efergy Current Transformer, 19mm Bore, Трансформатор тока

Efergy Jackplug Extra Sensor

Additional sensors for use with e2 and elite energy monitors. Both models of energy monitor come supplied with one sensor. If you are operating a 3-phase supply then you will require two additional sensors.

Sensor voltage range: 110V-300V
Measuring current: 50mA-120A (819-9798) or 50mA-95A (819-9779)

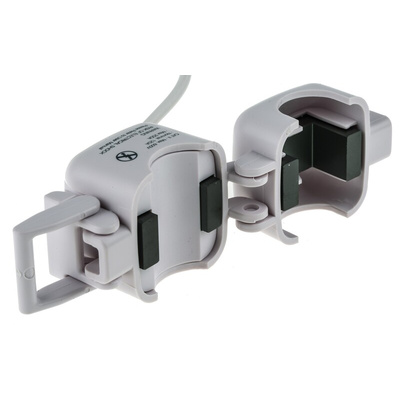

Can attach around a cable with a diameter up to 19mm (819-9798) or 12mm (819-9779)

How it works
All transmitters come with three spaces for sensors. Just look on the underside of the transmitter, take out the rubber cover of one of the spare spaces and plug in your additional sensor. Then attach it the same way as the previous one.
If you are purchasing a sensor for a monitor that you already own, check the connection type between the sensor and transmitter before ordering, to ensure you receive the correct product.
If you have an older monitor you may require the old 'DC' style fitments of sensor.

Wireless Power Meters

Datasheet
