RS PRO Control Cable, 6 Cores, 0.19 mm², Unscreened, 100m, White PVC Sheath, Кабель

RS PRO 6-Core Security Cable 0.19 mm² CSA, Polyvinyl Chloride PVC Sheath, 100 m

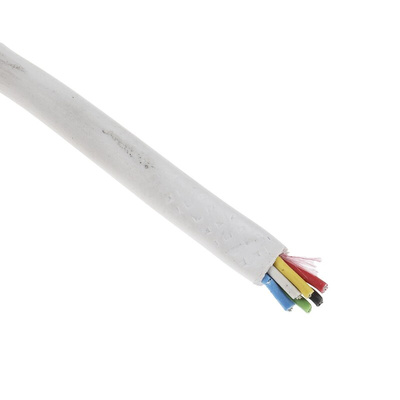

Use this 6-core multicore security cable from RS PRO in your monitoring and surveillance systems. Its six cores contain seven strands of 0.19 mm² grade 1 tinned annealed copper, which is corrosion-resistant. Each core is kept secure within PVC (polyvinyl chloride) insulation in different colours.

The 6 cores, covered by a white PVC sheath, are each capable of handling up to 50 V and a current rating of 1 A. There's a handy ripcord on the unscreened flexible cable, which makes it simple to strip the sheath back to access the cores.

Commonly found in CCTV signal cabling and signal distribution, this security cable operates between temperatures of -50°C to +70°C. In the event of a fire, this cable won't release harsh chemicals as it's free of lead, tin and halogen. It's also flame-retardant.

Features and Benefits

• Six cores of 7 / 0.19 mm² tinned annealed copper
• Outer diameter of 3.9 mm
• Polyvinyl Chloride (PVC) sheathing on inner cores (coloured) and outer cable (white)
• Voltage rating of 50 V
• Current rating 1 A per core
• Operational temperature of -50°C to +70°C

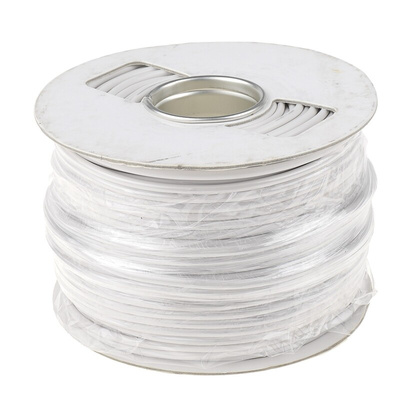

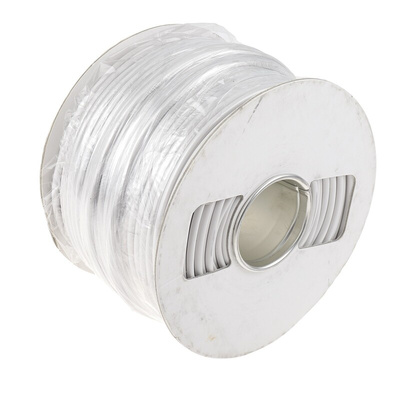

• Reel length of 100 m
• Meets BS EN 50363-4-1, BS4737 (standards for insulating and sheathing cables), and Euroclass Eca (fire safety for electrical wiring) standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
