RS PRO Control Cable, 4 Cores, 0.19 mm², Unscreened, 100m, White PVC Sheath, Кабель

RS PRO 4-Core Security Cable Polyvinyl Chloride (PVC) Sheath, 100 m

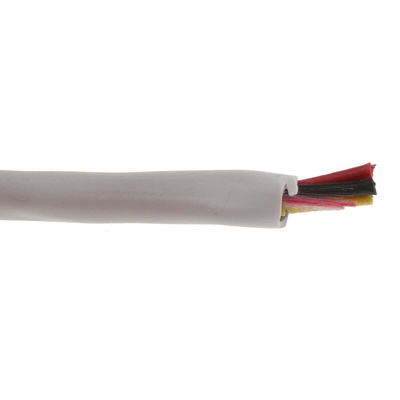

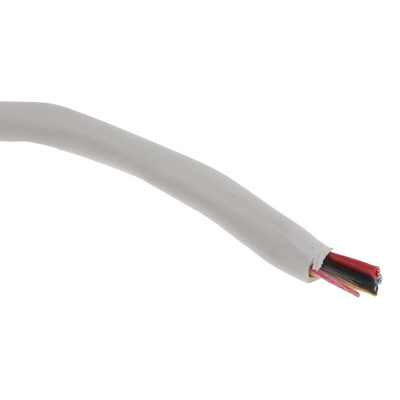

The RS PRO 4-core security cable is an ideal choice for when you need to run signal cabling to a closed-circuit TV camera or for other signal distribution. The unscreened flexible cable is made of the highest quality materials. The four cores each consist of seven strands of 0.19 mm² grade 1 tinned annealed copper, which have excellent resistance to corrosion. Each core is contained in PVC (polyvinyl chloride) insulation in black, red, blue or yellow.

Each core can handle up to 50 V and has a current rating of 1 A. The four cores are covered by a white PVC sheath. A convenient ripcord makes it easy to strip back the sheath to access the cores.

This multicore security cable can handle temperatures from -50°C to +70°C. It's flame-retardant and free of lead, tin and halogen, so it won't release harsh chemicals in the event of a fire. You'll find this cable in monitoring and surveillance systems across all industries.

Features and Benefits

• Four cores of 7/0.19 mm² tinned annealed copper
• Outer diameter of 3.5 mm
• Polyvinyl Chloride (PVC) sheathing on inner cores (coloured) and outer cable (white)
• Voltage rating of 50 V
• Current rating 1 A per core
• Operational temperature of -50°C to +70°C
• Reel length of 100 m
• Meets BS EN 50363-4-1, BS4737 (standards for insulating and sheathing cables), and Euroclass Eca (fire safety for electrical wiring) standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
