DES-1016D/B, D-Link DES-1016D, Unmanaged 16 Port Ethernet Switch UK, Коммутатор

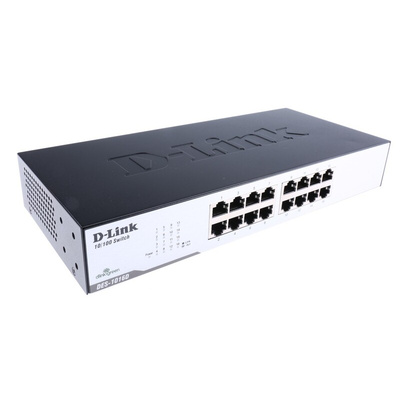

D-Link Desktop Switch

The D-Link 16-port Fast Ethernet unmanaged switch, achieving speeds up to 200Mbps per port in full-duplex mode. The switch is designed to enhance workgroup performance while providing a high level of flexibility.

Powerful yet easy to use, the DES-1016D allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Quickly and securely connect employees working in small offices with one another and with all the servers, printers, and other devices they use. It requires 100VAC to 240VAC 50/60Hz internal universal power supply.

Features and Benefits

Switching fabric 3.2Gbps
Network cables: 10BASE-T:UTP CAT 3/4/5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.)
Packet filtering /forwarding rates:Ethernet:14,880pps per port
Ideal for basic networking tasks
Auto-Sensing 10/100 Ports
Flow control for secure transmission
Quality of Service
Plug-and-play easy installation
Green features - IEEE802.3az EEE (Energy Efficient Ethernet) and EnergyStar Level V-certified, Save on energy costs
Weight: 1.08 kg
LED indicators – helps troubleshoot potential problems with the switch, connection or attached devices

Applications

The DES-1016D switches are ideal for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides a quick way to upgrade your network to Fast Ethernet connectivity.It is ideal for:

Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time
Small companies - it connects to your computers, printers, copiers and other office equipment

Certifications

IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
CE certified
FCC approved
ICES-003

Installation Guide - DES-1016D

Datasheet - DES-1016D
