2904921, Phoenix Contact PACT RCP-D95 Series Rogowski Coil Current Transformer, 4000A Input, 0 → 1 A Output, 8.3mm Bore,, Преобразователь тока

PACT RCP - Current Transformer

The PACT RCP Current Transformer Kit for retrofitting for alternating currents up to 4000 Aac.

Current Transformer Kit

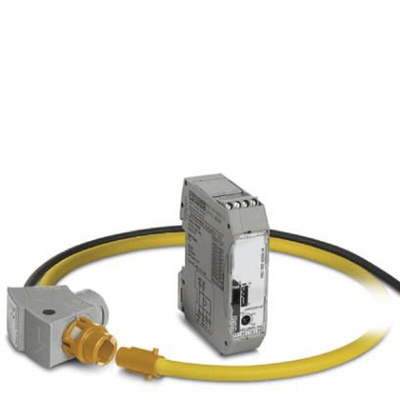

Kit consisting of 2 components: 1 A measuring transducer and a Rogowski coil
High system availability due to easy installation without removing system parts
Transform alternating currents up to 4000 A using a single measuring system
Space saving and handy: the current strength does not affect the size and weight of the coil
Safe installation and operation: no dangerous open circuit voltages
Harmonics and transients detected with phase accuracy with a large frequency range from 10 to 5000 Hz
Rogowski coil secured on power rails and circular conductors, plus high measuring accuracy, thanks to rofessional holding device
A holder for the coil is also available (stock-no.: 820-0447)

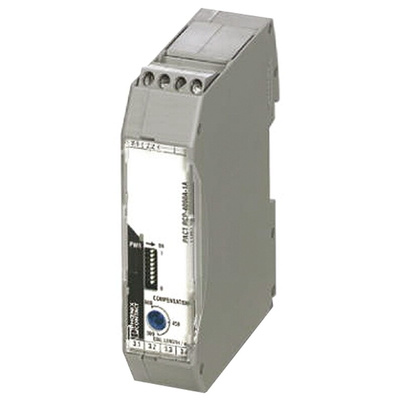

Measuring Transducer

Measuring transducer processes the mV signal of the upstream Rogowski coil
8 current measuring ranges (100 - 4000 Aac) which can be set via DIP switches
Max. output current of 1 Aac
Power supply 19.2 – 30 Vdc
Power consumption 4W

Rogowski Coil

The Rogowski coil is used for AC current measurement for busbars and power lines
The coil is available in different length and diameters:
Length: 300 mm, diameter when installed: 95 mm, stock-no.: 820-0431
Length: 450 mm, diameter when installed: 140 mm, stock-no.: 820-0435
Length: 600 mm, diameter when installed: 190 mm, stock-no.: 820-0444

Holder

The optional holder ensures the Rogowski coil is securely seated on busbars with a thickness of 5-15 mm
During installation, the coil housing is pushed onto the flange of the holding device and snaps in automatically
Stock-no is 820-0447

Phoenix Contact Rogowski Coil Current Transformer, 0 to 1A Output - PACT RCP-4000A-1A-D95 - 2904921

This current transformer from Phoenix Contact comes with a transducer and a Rogowski coil. Use it to convert powerful currents up to 4000A to moderate levels for safe reading.
The 300mm-long coil lets you connect to an electrical system for accurate measurement. Thanks to its portable 416.7g weight, you can quickly and easily move it between different systems as needed.
The unit's Rogowski coil is protected by an ingress protection (IP) rating of IP67, which means it's fully resistant to dust and water immersion of up to 1m in depth. The IP20 rating of the transducer protects it from contact with physical objects over 12mm in size. Mount this current transformer on a power line for the reliable conversion and safe measurement of its operating voltage.

Features & Benefits

• DIP (dual in-line plug) switch to easily adjust settings
• Flange-mounting for tool-free application
• Elastollan coil material for reliable resistance to wear and tear
• Maximum +80°C operating temperature prevents overheating
