2904922, Phoenix Contact PACT RCP-D140 Series Rogowski Coil Current Transformer, 4000A Input, 0 → 1 A Output, 8.3mm Bore,, Преобразователь тока

PACT RCP - Current Transformer

The PACT RCP Current Transformer Kit for retrofitting for alternating currents up to 4000 Aac.

Current Transformer Kit

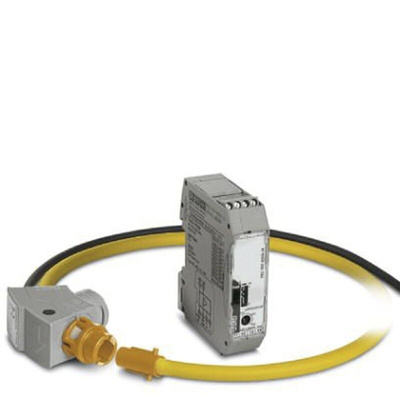

Kit consisting of 2 components: 1 A measuring transducer and a Rogowski coil
High system availability due to easy installation without removing system parts
Transform alternating currents up to 4000 A using a single measuring system
Space saving and handy: the current strength does not affect the size and weight of the coil
Safe installation and operation: no dangerous open circuit voltages
Harmonics and transients detected with phase accuracy with a large frequency range from 10 to 5000 Hz
Rogowski coil secured on power rails and circular conductors, plus high measuring accuracy, thanks to rofessional holding device
A holder for the coil is also available (stock-no.: 820-0447)

Measuring Transducer

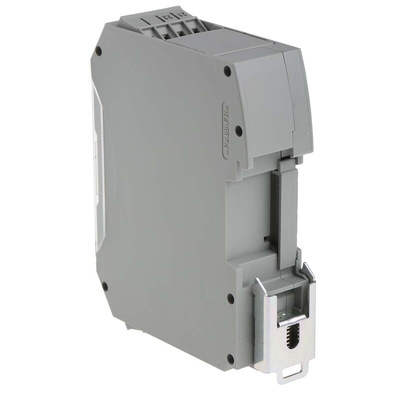

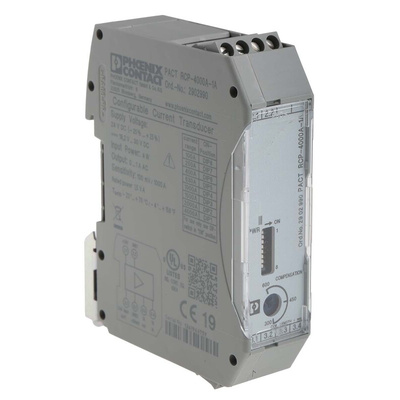

Measuring transducer processes the mV signal of the upstream Rogowski coil
8 current measuring ranges (100 - 4000 Aac) which can be set via DIP switches
Max. output current of 1 Aac
Power supply 19.2 – 30 Vdc
Power consumption 4W

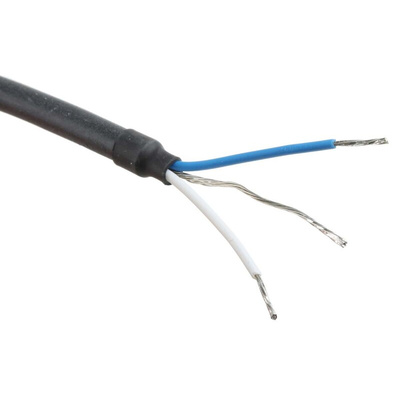

Rogowski Coil

The Rogowski coil is used for AC current measurement for busbars and power lines
The coil is available in different length and diameters:
Length: 300 mm, diameter when installed: 95 mm, stock-no.: 820-0431
Length: 450 mm, diameter when installed: 140 mm, stock-no.: 820-0435
Length: 600 mm, diameter when installed: 190 mm, stock-no.: 820-0444

Holder

The optional holder ensures the Rogowski coil is securely seated on busbars with a thickness of 5-15 mm
During installation, the coil housing is pushed onto the flange of the holding device and snaps in automatically
Stock-no is 820-0447

Phoenix Contact Flange-Mount Current Transformer, 0 to 1A Output - PACT RCP-4000A-1A-D140 - 2904922

This current transformer from Phoenix Contact is a combined transducer and Rogowski coil device. It converts alternating current in your power lines to a safe level, so you can measure it.
The transducer can process a broad range of eight currents between 100A and 4000A, so you can use it in diverse applications. To adjust the input current, simply set it via the DIP (dual in-line plug) switch. An IP (ingress protection) rating of IP20, means the unit is touchproof and protected from contact damage by objects larger than 12mm in size.
The Rogowski coil is housed in durable PC (polycarbonate) material with high heat resistance, so you can use it in environments up to +80°C. The flange mount design lets you easily attach it to an electrical system and ensures the reliable stability needed for accurate measurements.

Features & Benefits

• PA (polyamide) housed transducer has excellent impact resistance
• Maximum coil operating temperature of +80°C for safe use in hot environments
• Green LED (light-emitting diode) display for convenient status signalling
• Light 190g weight for minimal strain on your system

Phoenix Contact Current Transducer

Datasheet

Datasheet

Line Drawing - 2904922

Instruction Sheet - Rogowski Coil
