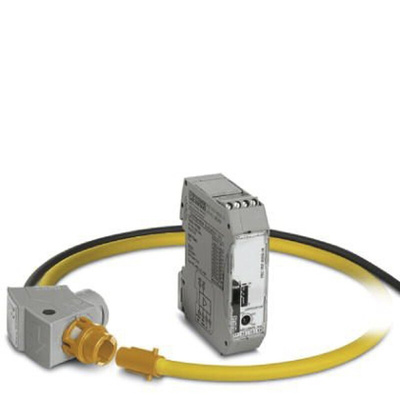

2904923, Phoenix Contact PACT RCP-D190 Series Rogowski Coil Current Transformer, 4000A Input, 0 → 1 A Output, 8.3mm Bore,, Преобразователь тока

Phoenix Contact Current Transformer, 19.2 to 30V DC Supply Voltage, 4W Power Consumption - PACT RCP-4000A-1A-D190 - 2904923

Need to reduce the current in your electrical system? Choose this current transformer from Phoenix Contact. It lets you convert large inputs between 100 and 4000A to an output current between 0 and 1A, making for easy power management in heavy-duty applications.

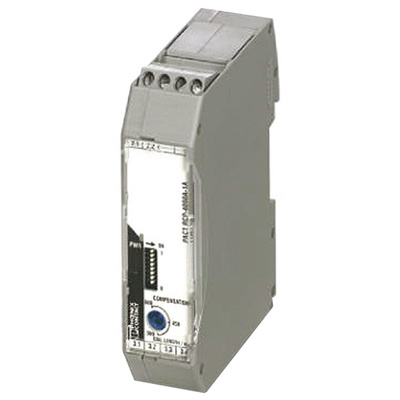

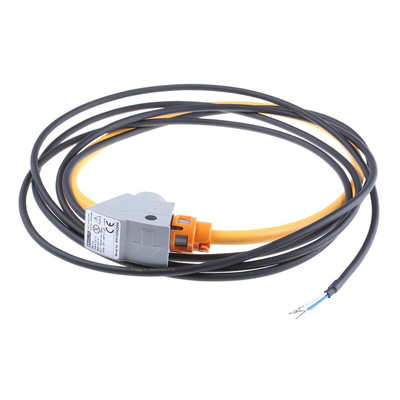

The transducer's housing is made of PA, so it's resistant to wear and chemicals, for safe use in harsh industrial environments. As it's designed for mounting on a DIN rail, it's quick and simple to install without the need for complex tools. The measuring coil has a wide operating temperature range of -30°C to +80°C, so it can withstand use in demanding conditions. You'll frequently find current transformers used in power grids.

Features & Benefits

• Transducer has an IP20 rating, meaning it's touch-proof and protected against objects larger than 12mm in size
• Low current consumption of 190mA for energy efficiency
• Coil has a PC housing for resistance to wear and impact
• Compact dimensions of 70.4 (H) x 22.5 (W) x 85mm (D) to add minimal bulk to your setup

Phoenix Contact Current Transducer

Datasheet

Instruction Sheet - 2904923

Line Drawing - 2904923
